Manufacturer: Eaton / CEAG

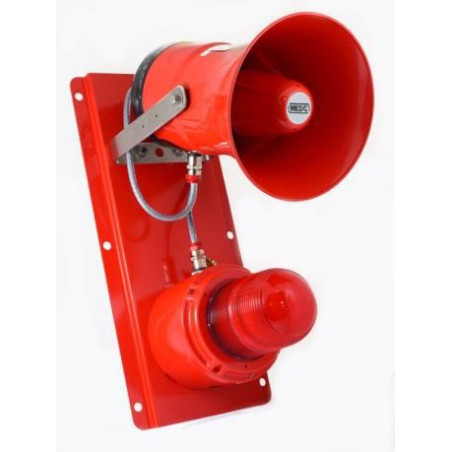

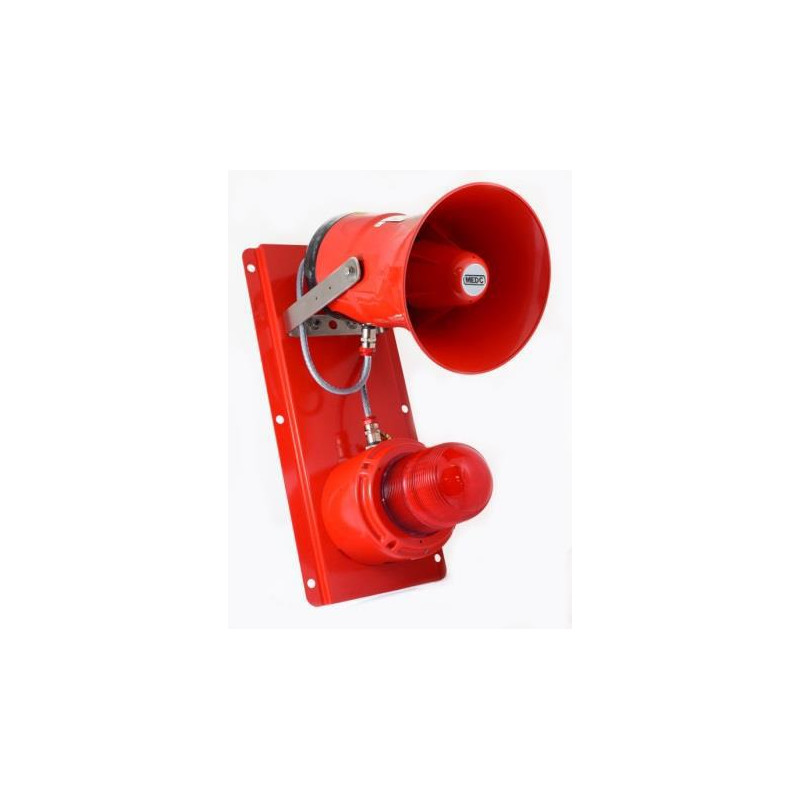

Light and sound signal DB3B/XB15 DB3B/XB15UL24VR/RED

  • DB3B/XB15UL24VR/RED

DB3B/XB15 – Light and Sound Alarm

  • Zones: 1, 2, 21, 22
  • Certifications: ATEX, IECEx, cULus, TR CU, CQST, INMETRO, CCOE
  • ATEX/IEC: Ex II 2GD, Ex d IIC T4/T5/T6 Gb; Ex tb IIIC T135°C/T100°C/T85°C Db*
  • UL/NEC: Class I, Div. 2, Groups A, B, C, D; Class II, Div. 2, Groups F, G
  • Operating temperature: -55°C to +70°C
  • Protection rating: IP66, IP67; NEMA 4X, 6
  • Housing: GRP (glass-fiber reinforced)
  • Cable entries: 2×M20, M25, ½″ NPT or ¾″ NPT
  • Power supply: 24–48 V DC, 110–254 VAC
  • Maximum sound pressure: up to 122 dB*, 1 m (±3 dB)
  • Number of tones: 28
  • Light source: Xenon bulb

* applies to selected versions.
