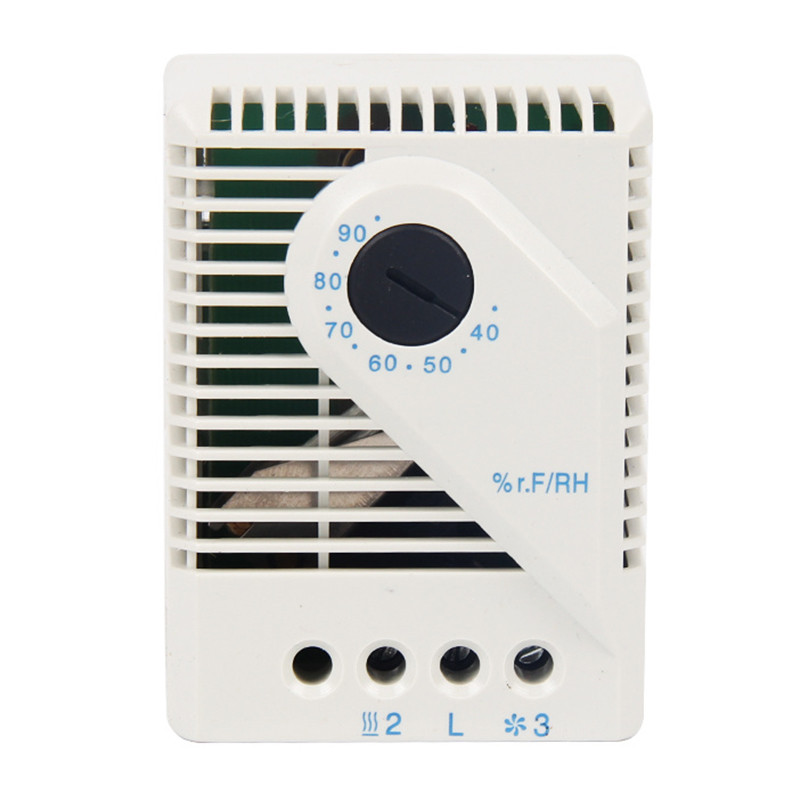

Mechanical hygrostat MRF 012
  • Mechanical hygrostat MRF 012

Photos are for informational purposes only. View product specification

Mechanical hygrostat MRF 012


Humidity set up
Switch over contact
High contact current
For DIN bus
Mechanical hygrostat is used to heating systems control.

Technical data
Switch over difference
4 % humidity (± 3 % tolerance)
Air flow speed
15m/Sec.
Contact type
Fast switch over
Contact resistance
<10mOhm
Lifetime
50 000 cycles
Min switch over current
AC/DC20V100mA
Max switch over current
AC 250V  5A (resistance load)
AC 250V 0,2A (inductive load @ cos phi = 0,8)
DC 20 W
EMC
EN 55014-1-2, EN 61000-3-2, EN 61000-3-3
Casing
plastic  UL94V-0, light grey
Terminals
3 pole 2,5 mm2
Mounting
For DIN 35 mm bus, EN 50022
Dimensions
67 x 50 x 38 mm
Weight
ok. 60 g.
Assembly
Arbitrary
Operation temperature
0 do 60 °C / -20 do 80 °C
IP
IP20
Certificates



Catalogue number
Article numberTemperature range
01220.0-00 35 - 95 %
