Manufacturer: M-SYSTEM

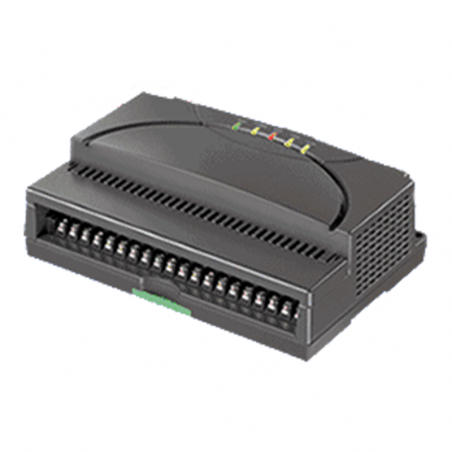

Recorder PC, ISB, 12 insulated inputs - RZUS

Recorder RZUS


Features

  • 12 channels, programmable inputs;
  • Channel-to-channel isolation;
  • Trigger input and alarm contact output;
  • USB and RS-485 interface;
  • Filtering protection against 50/60 Hz noise;
  • No need of dedicated power source.


Technical data

PN: RZUS –U9T/MSR
Power supply
from USB, 5 VDC
Operating temperature
0..+60 °C
Humidity
30..90%Rh
Mounting
surface or DIN rail assembly
Dimensions
175 x 128 x 56,5 mm
Weight
520 g
Communication
USB, RS-485
Isolation
between analogue inputs, trigger input, configure input, alarm output, USB and RS-485
Inputs
DC voltage and current
±60 mV, ±125 mV, ±250 mV, ±500 mV, ±1 V, ±3 V, ±6 V, ±12 V
Thermocouples
K, E, J, T, B, R, S, C, N, U, L, P
Resistive sensors
Pt100, Pt200, Pt300, Pt400, Pt500, Pt1000, Ni100, NI120, Ni508.4,
Ni-Fe604, Cu10 @ 25 °C, Pt50, JPt100
Resistances
200 Ω, 500 Ω, 5 kΩ


Dimensions [mm(inches)]

Rejestrator PC, USB, 12 izolowanych wejść – RZUS –U9T/MSR wymiar


Example configuration

Rejestrator PC, USB, 12 izolowanych wejść – RZUS –U9T/MSR przykładowa konfiguracja
