Manufacturer: Ebmpapst

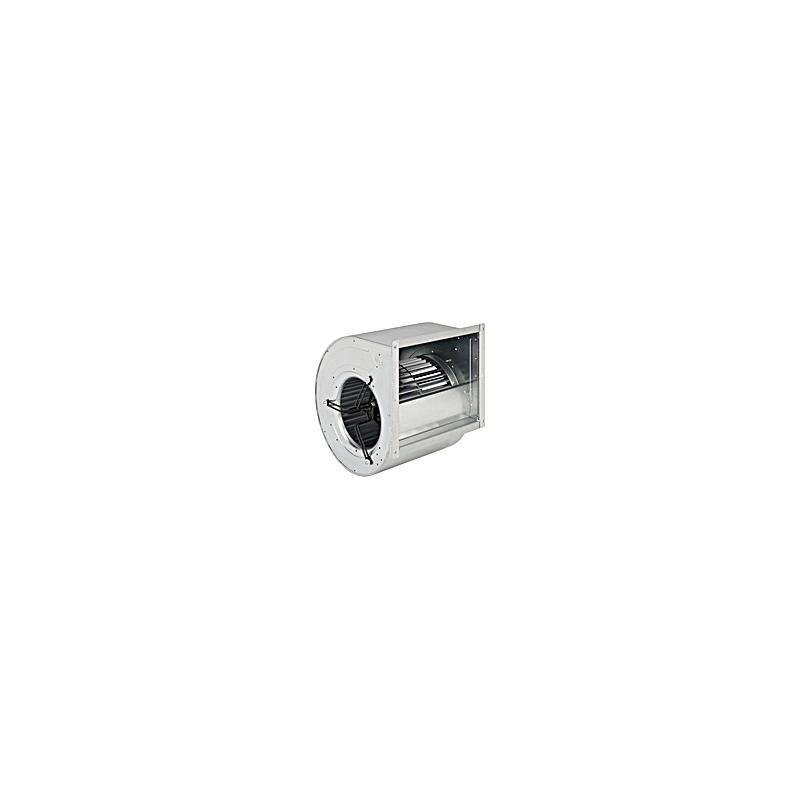

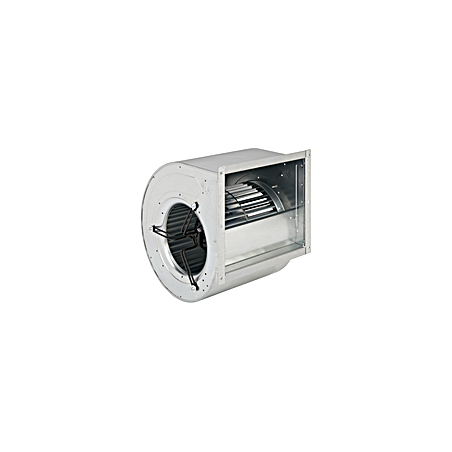

D3G318-AA37-11 EC radial fan 230V 750W

  • D3G318AA3711
  • Housing material Steel sheet, galvanized
  • Protection rating IP54
  • Frequency 50/60
  • Input power 750
  • Phase 1~
  • Nominal voltage 230
  • Speed 960
  • Current draw 3.4
  • Min. ambient temperature -25
  • Max. ambient temperature 40
  • Certificate EAC
  • Size 318 mm
  • Fan type EC double inlet centrifugal blower with spiral housing
  • Voltage range 200 ... 277
  • Rotor material Steel sheet, galvanized
  • Type of voltage AC
  • Motor protection Thermal Overload Protection (TOP) connected internally
  • Motor size 112
  • Insulation class B
  • Protection class against moisture (F) / environment (H) H1
  • Motor bearing Ball bearing
  • Rotor surface Painted black
  • Electronics housing material Die-cast aluminum
  • Max. permitted ambient temp. (transport/storage) 80
  • Min. ambient temp. (transport/storage) -40
  • Min. back pressure 260
  • Weight 21,2 kg
  • Compliance with standards EN 61800-5-1 / CE
