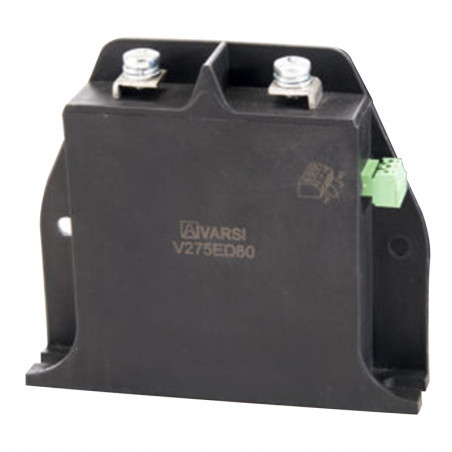

Varistors - e60 series
  • Varistors - e60 series

Photos are for informational purposes only. View product specification

Manufacturer: Varsi

Varistors - e60 series

Operation temperature range
-40...+85C
Storage temperature
-40...+110C
Response time
< 25ns

Type Maximum Ratings Ta=+85°C(+185°F) Characteristics Ta = +25°C (+77°F)
Max operating voltage Dissipation power



Pmax
[W]
Current
(8/20 μs)

Imax [A]
Absorb energy (2 ms)


W max
[J]
Varistor voltage (1 mA)

VN[V]
Varistor voltage tolerance  VN
∆VN [+%]
Max discharge impulse current(8/20 μs) Capacity f=1kHz


C [pF]
RMS Voltage Vms
[V]
DC Voltage VDC
[V]
VC [V] I [A]
V130E60 130 170 1,6 70000 490 205 10 340 500 15000
V140E60 140 180 1.6 70000 445 220 10 360 500 12500
V150E60 150 200 1.6 70000 485 240 10 395 500 11500
V175E60 175 225 1.6 70000 545 270 10 455 500 9800
V230E60 230 300 1.6 70000 725 360 10 595 500 8000
V250E60 250 320 1.6 70000 785 390 10 650 500 7200
V275E60 275 350 1.6 70000 870 430 10 710 500 6800
V300E60 300 385 1.6 70000 950 470 10 840 500 6300
V320E60 320 420 1.6 70000 1050 510 10 840 500 5800
V385E60 385 505 1.6 70000 1250 620 10 1025 500 4800
V420E60 420 560 1.6 70000 1500 680 10 1120 500 4500
V440E60 440 585 1.6 70000 1550 715 10 1180 500 4300
V460E60 460 615 1.6 70000 1600 750 10 1240 500 4100
V510E60 510 670 1.6 70000 1650 820 10 1355 500 3800
V550E60 550 745 1.6 70000 1700 910 10 1500 500 3500
V625E60 625 825 1.6 70000 1750 1000 10 1650 500 3200
V680E60 680 895 1.6 70000 1800 1100 10 1815 500 2800
V750E60 750 1060 1.6 70000 2000 1200 10 2000 500 2600
V1100E60 1100 1465 1.6 70000 3000 1800 10 2970 500 1800

Dimensions E60 SERIES

//
