Manufacturer: Ebmpapst

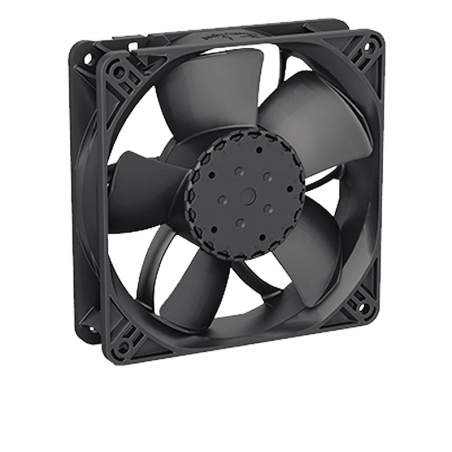

8452 GN Compact axial fan

  • 8452 GN
  • Cable Przewody AWG 24, TR 64, pozbawione izolacji i cynowane.
  • Air flow direction Wydech nad rozpórkami
  • Dimensions 80 x 80 x 25 mm
  • Housing material Tworzywo PBT wzmocnione włóknem szklanym
  • Nominal voltage 12
  • Speed 3600
  • Power input 1.8
  • Min. ambient temperature -20
  • Max. ambient temperature 70
  • Air flow 68
  • Sound pressure level 36
  • Voltage range 8 .. 15
  • Bearing Niezwykle ciche łożysko ślizgowe Sintec.
  • Direction of rotation Przeciwnie do ruchu wskazówek zegara, patrząc w kierunku rotora
  • Rotor material Tworzywo PA wzmocnione włóknem szklanym
  • Lifetime L10 at 40 ° C 70000 h
  • L10 lifetime at maximum temperature 35000 h
  • Sound power level 5
  • Type of voltage DC
  • Motor protection Ochrona przed odwrotną polaryzacją i zablokowanym wirnikiem.
  • Weight 0.105 kg
