Manufacturer: STEGO

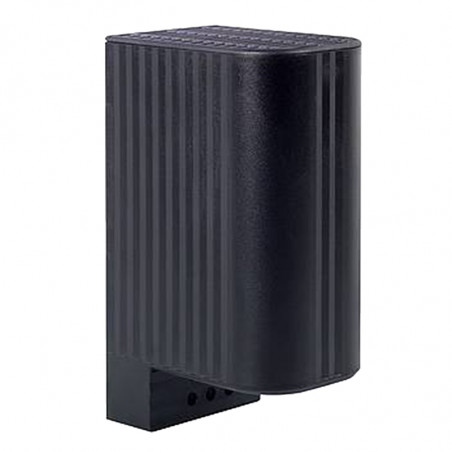

Semiconductor heater - CS 060 series

- Easy assemble
- Double insulation
- Wide range of power supply
- Small dimensions
- CSF version equipped with thermostat

Semiconductor heater -  CS 060 series


Technical data

Operating voltage  AC/DC 120 – 240 V¹ (min. 110 V, max. 265 V)
Heating element  PTC resistor – temperature limiting
Surface temperature  < +80 °C (+176 °F), except upper protective grille
Connection  4-pole terminal 2.5 mm², torque 0.8 Nm max.
Casing  plastic according to UL94 V-0, black
Mounting  clip for 35 mm DIN rail, EN 60715
Fitting position  vertical airflow (air outlet up, connection on bottom)
Operating/Storage temperature  -45 to +70 °C (-49 to +158 °F)
Operating/Storage humidity  max. 90 % RH (non-condensing)
Protection type/Protection class  IP20 / II (double insulated)
Approvals  VDE, UL File No. E150057, EAC
Note  other voltages on request
1 Operating with voltages below AC/DC 140 V reduces heating performance by approx. 10 %.


Characteristic
Semiconductor heater -  CS 060 series
Dimensions
Semiconductor heater -  CS 060 series dimensions Semiconductor heater -  CS 060 series connection example

Art. No.  Heating capacity2 Inrush current (max.)  Recommended pre-fuse T (time-delay)  Air outlet temperature3  Dimensions  Weight (approx.)

06000.0-00

 50 W  2.5 A  4.0 A  +86 °C (+186.8 °F)  110 x 60 x 90 mm  0.3 kg

06010.0-00

 100 W  4.5 A  8.0 A  +120 °C (+248 °F)  110 x 60 x 90 mm  0.3 kg

06020.0-00

 150 W  8.0 A  10.0 A  +145 °C (+293 °F)  150 x 60 x 90 mm  0.5 kg
