Manufacturer: Eaton / CEAG

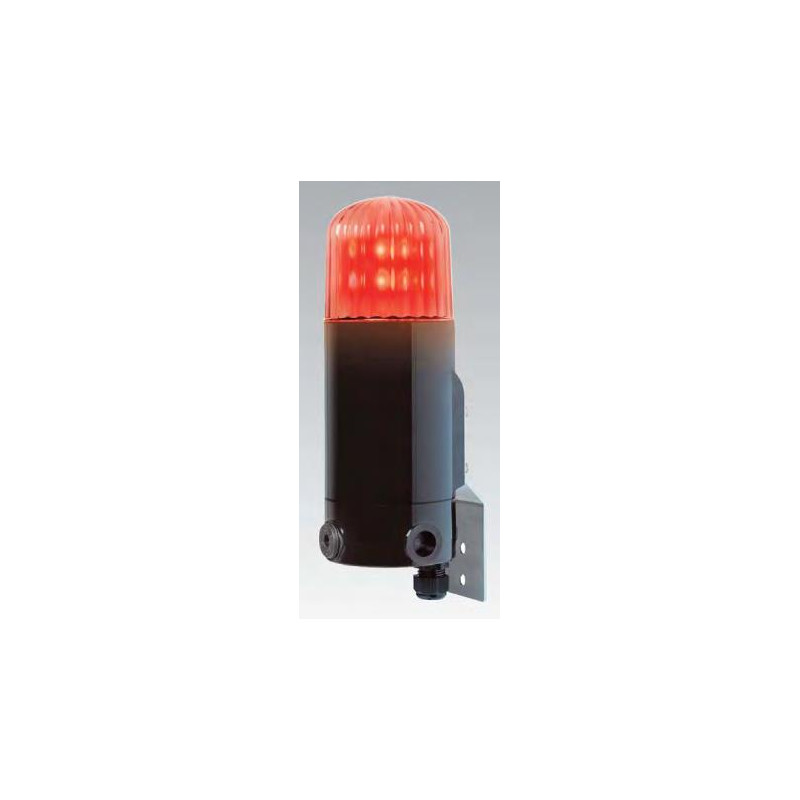

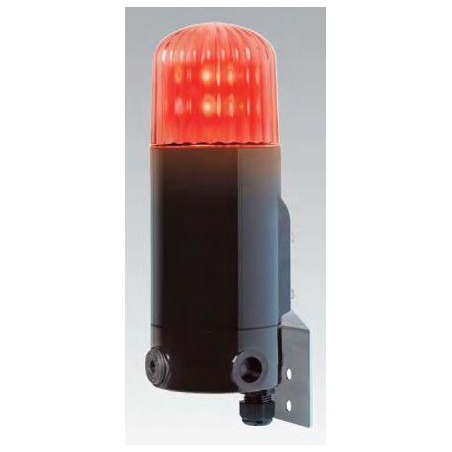

Expertline LED LD1511B04 traffic light

  • LD1511B04

Expertline LED Traffic Light

  • Zones: 1, 2, 21, 22
  • Certifications: ATEX, IECEx, cULus, TR CU, INMETRO
  • ATEX/IEC: Ex II 2G, Ex e mb [ib] IIC T4 Gb; Ex II 2D, Ex mb t IIIC IP66 T130°C Db
  • UL/NEC: Class I, Div. 2, Groups A, B, C, D, T4; Class I, Zone 2, Groups IIA, IIB, IIC, T4
  • Approvals: ICAO
  • Operating temperature: −40°C to +65°C*
  • Ingress protection: IP66; NEMA 4X
  • Housing: Polycarbonate
  • Entry: 2×M20 and 1×M20 plug
  • Weight: 2.5 kg
  • Power supply: 24 V DC, 120–230 V AC
  • Light source: LED

* depending on version.
