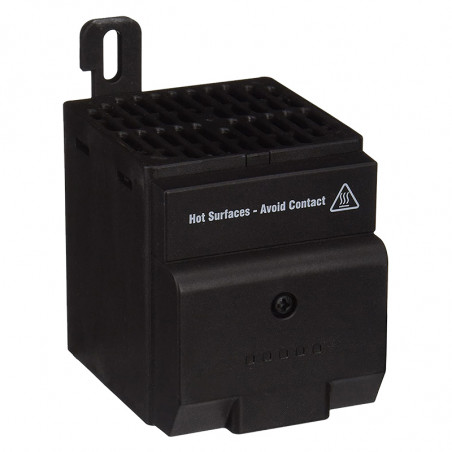

Semiconductor blower - CS 028 / CSL 028 - 150W, 250W, 400W
Semiconductor blower - CS 028 / CSL 028 - 150W, 250W, 400W

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: STEGO

Semiconductor blower - CS 028 / CSL 028 - 150W, 250W, 400W

- Small, compact construction
- Silent and efficient ventilator's motor
- PTC dynamic heating
- Din assembled

Semiconductor blower - CS 028 / CSL 028 - 150W, 250W, 400W

Technical data

Heating element  PTC resistor – temperature limiting
Surface temperature  150 W/250 W: max. +50 °C (+122 °F), 400 W: max. +65 °C (+149 °F) each except upper protective grille at +20 °C (+68 °F) ambient temperature
Axial fan, ball bearing  air flow, free flow CS 028: 13.8 m³/h CSL 028: 45 m³/h (AC 230 V), 54 m³/h (AC 120 V) service life 40,000 h at +40 °C (+104 °F)
Connection  2-pole clamp max. 2.5 mm² (CSL 028 with strain relief), clamping screw torque 0.8 Nm max.
Casing  plastic according to UL94 V-0, black
Mounting  clip for 35 mm DIN rail, EN 60715 or screw fixing (Ø 5.3 mm)
Fitting position  vertical airflow (air outlet up)
Operating/Storage temperature  -45 to +70 °C (-49 to +158 °F)
Operating/Storage humidity  max. 90 % RH (non-condensing)
Protection type/Protection class  IP20 / II (double insulated)
Approvals  UL File No. E150057 (according to UL 5084, NITW File on request), EAC, VDE only: 230 V
Note  other voltages on request



Semiconductor blower - CS 028 / CSL 028 - 150W, 250W, 400W

Art. No.
clip fixing		 Art. No.

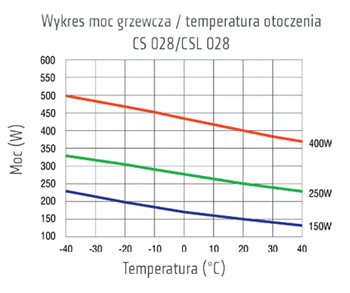

screw fixing		 Series Operating voltage Heating capacity¹ Inrush current
max.		 Recommended
pre-fuse T (time-delay)		 Dimensions
(H x W x D)		 Weight (approx.)

02800.0-00

 02800.0-01 CS 028 AC 230 V, 50/60 Hz 150 W 12,0 A 10,0 A 75 x 65 x 90 mm 0,3 kg

02811.0-00

 02811.0-01 CSL 028 AC 230 V, 50/60 Hz 250 W 9,0 A 10,0 A 90 x 85 x 111 mm 0,5 kg

02810.0-00

 02810.0-01 CSL 028 AC 230 V, 50/60 Hz 400 W 15,0 A 16,0 A 90 x 85 x 111 mm 0,5 kg

02800.9-00

 02800.9-01 CS 028 AC 120 V, 50/60 Hz 150 W 6,0 A 10,0 A 75 x 65 x 90 mm 0,3 kg

02811.9-00

 02811.9-01 CSL 028 AC 120 V, 50/60 Hz 250 W 6,0 A 10,0 A 90 x 85 x 111 mm 0,5 kg

02810.9-00

 02810.9-01 CSL 028 AC 120 V, 50/60 Hz 400 W 9,0 A 10,0 A 90 x 85 x 111 mm 0,5 kg
1 at +20 °C (+68 °F) ambient temperature
