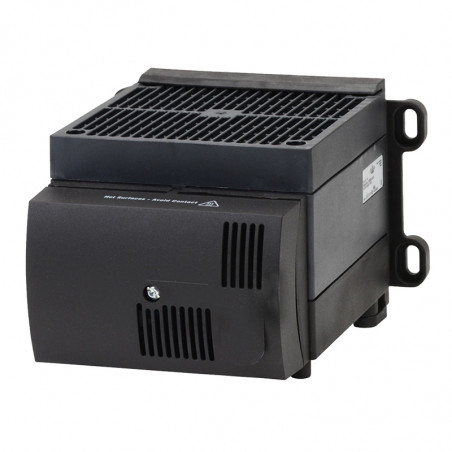

High efficiency heat blower CS 130 - 1200W
High efficiency heat blower CS 130 - 1200W

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: STEGO

High efficiency heat blower CS 130 - 1200W

- Compact execution
- High efficient heating element
- Double insulation
- With build in thermostat(option)



Technical data

Heating element  PTC resistor – temperature limiting
Temperature safety cut-out  to protect against overheating in case of fan failure, automatic reset
Axial fan, ball bearing  airflow 160 m³/h, free flow service life 50,000 h at +25 °C (+77 °F)
Connection  2-pole max. 2.5 mm², clamping screw with strain relief, torque 0.8 Nm max.
Casing  plastic according to UL94 V-0, black
Mounting  clip for 35 mm DIN rail, EN 60715 or screw fixing (M6)
Fitting position  vertical airflow (air outlet up)
Dimensions  182 x 160 x 120 mm
Weight  approx. 1.3 kg
Operating/Storage temperature  -45 to +70 °C (-49 to +158 °F)
Operating/Storage humidity  max. 90 % RH (non-condensing)
Protection type/Protection class  IP20 / II (double insulated)

Art. No.  Model  Operating voltage  Heating capacity¹  Inrush current max.  Recommended pre-fuse T (time-delay)  Setting range²  Approvals

13060.0-00

 Fan Heater with thermostat  AC 230 V, 50/60 Hz  1,200 W  13.0 A  10.0 A  0 to +60 °C  VDE+ UL File No. E1500573 +EAC

13060.0-01

 Fan Heater without thermostat  AC 230 V, 50/60 Hz  1,200 W  13.0 A  10.0 A  -  VDE +UL File No. E1500573 +EAC

13060.9-00

 Fan Heater with thermostat  AC 120 V, 50/60 Hz  1,200 W  16.0 A  16.0 A  +32 to +140 °F  UL File No. E1500573 +EAC

13060.9-01

 Fan Heater without thermostat  AC 120 V, 50/60 Hz  1,200 W  16.0 A  16.0 A  -  UL File No. E1500573 +EAC
