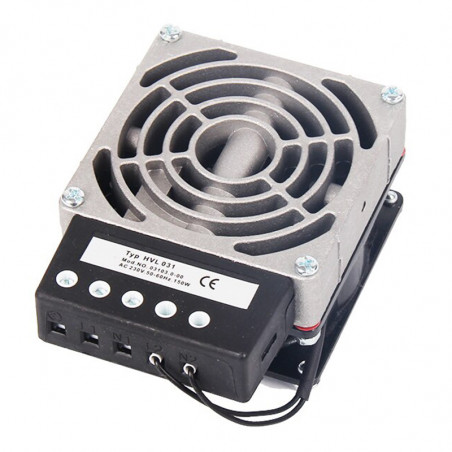

Heating blow pipe - HV 031 / HVL 031: 100W to 400 W series
Heating blow pipe - HV 031 / HVL 031: 100W to 400 W series

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: STEGO

Heating blow pipe - HV 031 / HVL 031: 100W to 400 W series

- Small dimensions
- Flat compact execution
- 2 sizes
- High efficiency
- Built in temperature sensor
- DIN assembled





Technical data
HV 031/HVL 031: Heating without ventilator
  Heating with ventilator
Heating element high power insert
Current consumption: max. 2 A / 230 V AC
Temperature sensor: For overheat protection
Heating body Aluminium
Terminals: 3 pole 2,5 mm2
Terminal casing plastic UL94 V-0, black
Mounting: Clamp for  DIN 35 mm, EN 50022
Assemble: Horizontal
Operation temperature: - 45°C do +70°C
IP IP 20 /II
HVL 031 Certificates: UL File No. E187294 Heating with ventilator
Axial ventilator: durability 50 000 h @ 25°C (77°F)

Dimensions[mm]
Important note: Heater may only be operated together with fan. Danger of overheating

Art. No. HV 031
AC 230 C, 50/60 Hz 		 Art. No. HV 031
AC 120 V, 50/60 Hz 		 Heating capacity  Recommended pre-fuse T (time-delay)
AC 230 V AC 120 V 		 Dimensions  Weight (approx.)

03100.0-00

03100.9-00

 100 W  1.0 A  2.0 A  80 x 112 x 22 mm  0.4 kg

03101.0-00

03101.9-00

 150 W  1.25 A  2.5 A  80 x 112 x 22 mm  0.4 kg

03110.0-00

03110.9-00

 200 W  2.0 A  3.0 A  119 x 151 x 22 mm  0.5 kg

03111.0-00

03111.9-00

 300 W  2.0 A  4.0 A  119 x 151 x 22 mm  0.5 kg

03112.0-00

03112.9-00

 400 W  4.0 A  6.3 A  119 x 151 x 22 mm  0.5 kg

Art. No. HVL 031 AC 230 V, 50/60 Hz  Art. No. HVL 031 AC 120 V, 50/60 Hz  Heating capacity  Recommended pre-fuse T (time-delay)
AC 230 V AC 120 V 		 Airflow min., free flow  Dimensions  Weight (approx.)

03102.0-00

03102.9-00

 100 W  1.0 A  2.0 A  35 m³/h  80 x 112 x 47 mm  0.6 kg

03103.0-00

03103.9-00

 150 W  1.25 A  2.5 A  35 m³/h  80 x 112 x 47 mm  0.6 kg

03113.0-00

03113.9-00

 200 W  2.0 A  3.0 A  108 m³/h  119 x 151 x 47 mm  0.9 kg

03114.0-00

03114.9-00

 300 W  2.0 A  4.0 A  108 m³/h  119 x 151 x 47 mm  0.9 kg

03115.0-00

03115.9-00

 400 W  4.0 A  6.3 A  108 m³/h  119 x 151 x 47 mm  0.9 kg
