Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: STEGO

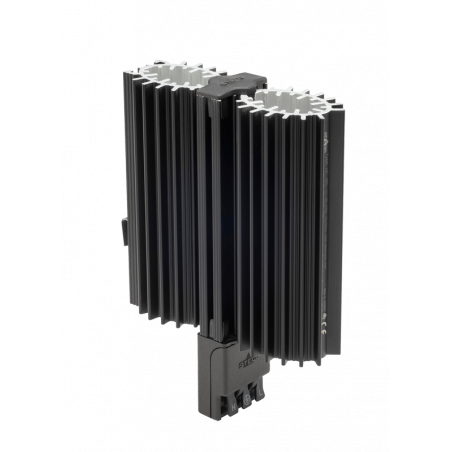

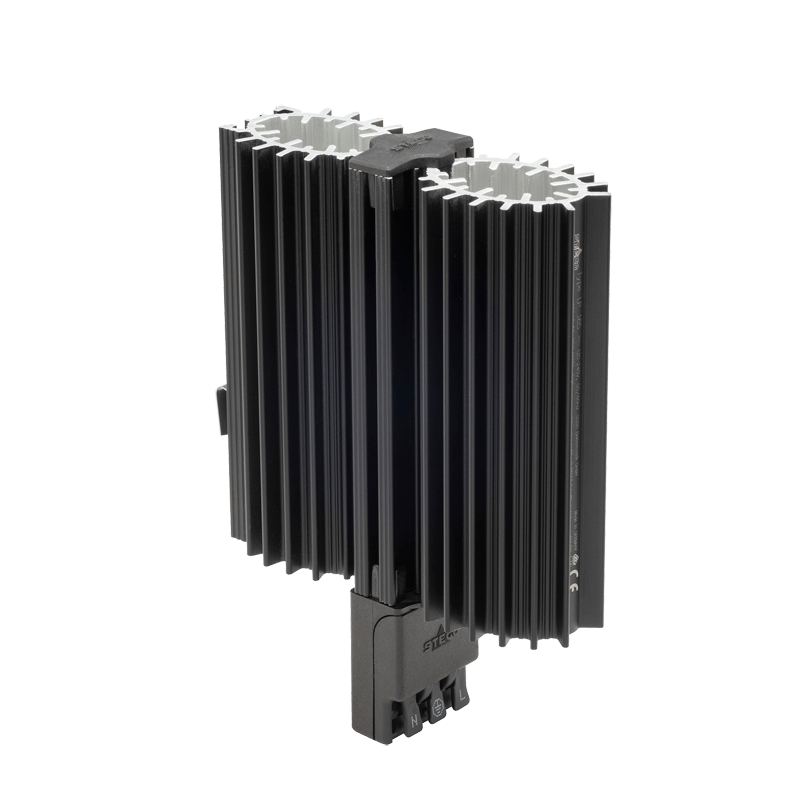

16501.0-00 semiconductor heater type LP 165

  • 16501.0-00
  • Product Type Grzałka
  • Supply voltage 120 V - 240 V AC
  • Dimensions 107 x 42 x 121 mm
  • Protection rating IP20
  • Heating power 60 W
  • Electrical hookup 3 x złącza sprężynowe-naciskowe dla przewodów wielodrutowych 0,5 - 1,5 mm² (z izolowaną końcówką) i przewodów drutowych 0,5 - 2,5 mm²
  • Weight 300 g

Compact loop heater based on PTC heating elements for heating enclosures containing electrical or electronic components. The innovative aluminum profile in the loop design creates an optimized chimney effect for reliable temperature control of the electrical enclosure. Quick and easy installation/electrical connection using spring-compression connectors.

  • Quick installation thanks to clip mounting and spring-compression connectors.
  • Dynamic heating thanks to PTC technology.
  • Loop heating body for optimal temperature distribution.
  • Wide voltage range.
  • Worldwide approvals.
Less
Read more

Send an inquiry

Are you interested in this product? Do you need additional information or individual pricing?

Contact us
ASK FOR THE PRODUCT close
Thank you for sending your message. We will respond as soon as possible.
ASK FOR THE PRODUCT close
Browse
send an inquiry

Add to Wishlist

You must be logged in

  • Product Type Grzałka
  • Supply voltage 120 V - 240 V AC
  • Dimensions 107 x 42 x 121 mm
  • Protection rating IP20
  • Heating power 60 W
  • Electrical hookup 3 x złącza sprężynowe-naciskowe dla przewodów wielodrutowych 0,5 - 1,5 mm² (z izolowaną końcówką) i przewodów drutowych 0,5 - 2,5 mm²
  • Weight 300 g

Compact loop heater based on PTC heating elements for heating enclosures containing electrical or electronic components. The innovative aluminum profile in the loop design creates an optimized chimney effect for reliable temperature control of the electrical enclosure. Quick and easy installation/electrical connection using spring-compression connectors.

  • Quick installation thanks to clip mounting and spring-compression connectors.
  • Dynamic heating thanks to PTC technology.
  • Loop heating body for optimal temperature distribution.
  • Wide voltage range.
  • Worldwide approvals.
