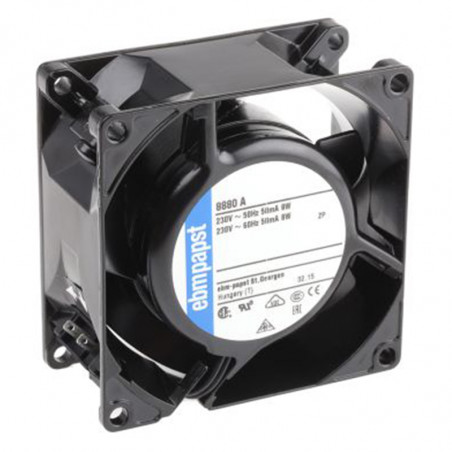

AC axial ventilators
  • AC axial ventilators

Photos are for informational purposes only. View product specification

AC axial ventilators

AC axial ventilators

Table. Technical data

TypeEfficiency
[m3/h]
Voltage
[VDC]
Noise level
[dB(A)]
bearingInput power
[W]
Operation temperature
[°C]
Operation time @.
[40°C/h]
Air flow directionTerminal type
slideball
SERIES8000A / 80 x 80 x 38 [mm]
8880A 29 230/50 26   9 -10 do 80 60000 A S
8850A 36 230/50 31   12,5 -10 do 70 52500 A S
8550A 48 230/50 36   12 -10 do 70 52500 A S
8556A 48 230/50 37   + 12 -40 do 90 52500 A S
8830A 34 115/60 29   8 -10 do 80 62500 A S
8800A 45 115/60 34   11 -10 do 70 55000 A S
8500A 57 115/60 41   11 -10 do 75 55000 A S
8506A 57 115/60 42   + 11 -40 do 95 55000 A S
SERIES8000N / 80 x 80 x 38 [mm]
8880N 30 230/50 18   9 -10 do 80 60000 V L
8850N 37 230/50 24   12,5 -10 do 70 52500 V L
8550N 50 230/50 30   12 -10 do 70 52500 V L
8556N 50 230/50 31   + 12 -40 do 90 52500 V L
8830N 36 115/60 21   8 -10 do 80 62500 V L
8800N 47 115/60 28   11 -10 do 70 55000 V L
8500N 61 115/60 34   11 -10 do 75 55000 V L
8506N 61 115/60 35   + 11 -40 do 95 55000 V L
SERIES8000TA / 76 Æ x 37 [mm]
8880TA 23 230/50 15   9 -10 do 80 60000 A L
8850TA 30 230/50 19   12 -10 do 70 52500 A L
8550TA 38 230/50 25   12 -10 do 70 52500 A L
8556TA 38 230/50 26   12 -40 do 90 52500 A L
8830TA 26 115/60 18   8 -10 do 80 62500 A L
8800TA 34 115/60 23   11 -10 do 70 55000 A L
8500TA 45 115/60 30   11 -10 do 75 55000 A L
8506TA 45 115/60 31   + 11 -40 do 95 55000 A L
SERIES8000TV / 76 Æ x 37 [mm]
8880TV 24 230/50 15   9 -10 do 80 60000 V L
8850TV 31 230/50 20   12 -10 do 70 52500 V L
8550TV 40 230/50 27   12 -10 do 70 52500 V L
8556TV 40 230/50 28   + 12 -40 do 90 52500 V L
8830TV 27 115/60 18   8 -10 do 80 62500 V L
8800TV 36 115/60 24   11 -10 do 70 55000 V L
8500TV 47 115/60 32   11 -10 do 75 55000 V L
8506TV 47 115/60 33   + 11 -40 do 95 55000 V L
SERIES3900 / 92 x 92 x 25 [mm]
3950L 31 230/50 24   6 -10 do 80 70000 V S
3956L 31 230/50 24   + 6 -40 do 80 70000 V S
3950M 45 230/50 29   6 -10 do 80 70000 V S
3956M 45 230/50 29   + 6 -40 do 80 70000 V S
3950 59 230/50 35   11 -20 do 80 55000 V S
3956 59 230/50 35   + 11 -40 do 80 55000 V S
3900L 39 115/60 27   5 -10 do 80 70000 V S
3906L 39 115/60 27   + 5 -40 do 80 70000 V S
3900M 53 115/60 34   5 -10 do 80 70000 V S
3906M 53 115/60 34   + 5 -40 do 80 70000 V S
3900 70 115/60 40   9 -20 do 80 60000 V S
3906 70 115/60 40   + 9 -40 do 80 60000 V S



Scheme

SERIES8000A

SERIES8000N

SERIES8000TA

SERIES8000TV

SERIES3900

Table. Technical data

TypeEfficiency
[m3/h]
Voltage
[VDC]
Noise level
[dB(A)]
bearingInput power
[W]
Operation temperature
[°C]
Operation time @.
[40°C/h]
Air flow directionTerminal type
slideball
SERIES3000 / 92 x 92 x 38 [mm]
3850 49 230/50 24 +   9 -10 do 75 60000 V L
3856 54 230/50 26   + 9 -40 do 90 60000 V L
3550 67 230/50 32 +   9 -10 do 80 60000 V L
3556 67 230/50 33   + 9 -40 do 90 60000 V L
3650 75 230/50 36 +   12 -10 do 55 52500 V L
3656 75 230/50 37   + 12 -40 do 75 52500 V L
3800 54 115/60 26 +   8 -10 do 80 62500 V L
3806 60 115/60 29   + 8 -40 do 95 62500 V L
3500 73 115/60 35 +   8 -10 do 80 62500 V L
3506 73 115/60 36   + 8 -40 do 95 62500 V L
3600 89 115/60 41 +   11 -10 do 65 55000 V L
3606 89 115/60 42   + 11 -40 do 75 55000 V L
SERIES9900 / 119 x 119 x 25 [mm]
9956L 84 230/50 29,5   + 9,5 -40 do 80 57500 V S
9956M 104 230/50 35,5   + 10 -40 do 80 57500 V S
9950 117 230/50 37 +   14 -20 do 70 47500 V S
9956 117 230/50 37   + 14 -40 do 70 47500 V S
9906L 100 115/60 34,5   + 8 -40 do 80 62500 V S
9906M 111 115/60 37   + 8 -40 do 80 62500 V S
9900 135 115/60 42 +   12 -20 do 70 52500 V S
9906 135 115/60 42   + 12 -40 do 70 52500 V S
SERIES4000N / 119 x 119 x 38 [mm]
4890N 80 230/50 25 +   11 -10 do 70 55000 A S
4850N 100 230/50 32 +   10 -10 do 70 57500 A S
4580N 123 230/50 41 +   18 -10 do 55 40000 A S
4550N 145 230/50 44 +   16,5 -10 do 55 42500 A S
4650N 160 230/50 46 +   19 -10 do 55 37500 A S
4656N 160 230/50 47   + 19 -40 do 85 37500 A S
4840N 85 115/60 26 +   10 -10 do 75 57500 A S
4800N 97 115/60 32 +   9 -10 do 75 60000 A S
4530N 151 115/60 45 +   16 -10 do 65 42500 A S
4500N 169 115/60 48 +   15 -10 do 65 47500 A S
4600N 180 115/60 50 +   18 -10 do 60 40000 A S
4606N 180 115/60 51   + 18 -40 do 90 40000 A S
SERIES4000Z / 119 x 119 x 38 [mm]
4850Z 100 230/50 26 +   13 -10 do 65 50000 V S
4580Z 115 230/50 30 +   13 -10 do 65 50000 V S
4650Z 160 230/50 40 +   19 -10 do 50 37500 V S
4656Z 160 230/50 40   + 19 -40 do 75 37500 V S
4800Z 105 115/60 28 +   12 -10 do 70 52500 V S
4530Z 120 115/60 32 +   12 -10 do 70 52500 V S
4600Z 180 115/60 45 +   18 -10 do 60 40000 V S
4606Z 180 115/60 45   + 18 -40 do 85 40000 V S
SERIES4600TA / 113 Æ x 37 [mm]
4650TA 138 230/50 41 +   19 -10 do 45 37500 A L
4656TA 138 230/50 42   + 19 -40 do 75 37500 A L
4600TA 147 115/60 43 +   18 -10 do 50 40000 A L
4606TA 147 115/60 44   + 18 -40 do 80 40000 A L



Scheme


SERIES3000

SERIES9900

SERIES4000N

SERIES4000Z

SERIES4600TA

Table. Technical data

TypeEfficiency
[m3/h]
Voltage
[VDC]
Noise level
[dB(A)]
bearingInput power
[W]
Operation temperature
[°C]
Operation time @.
[40°C/h]
Air flow directionTerminal type
slide  ball
SERIES4600TZ / 108 Æ x 37 [mm]
4650TZ 125 230/50 42 +   19 -10 do 50 37500 V L
4656TZ 125 230/50 42   + 19 -40 do 65 37500 V L
4600TZ 140 115/60 45 +   18 -10 do 50 40000 V L
4606TZ 140 115/60 45   + 18 -40 do 75 40000 V L
SERIES5900 / 127 x 127 x 38 [mm]
5988 150 230/50 37   + 13 -30 do 55 35000 V S
5950 180 230/50 43 +   18 -20 do 50 40000 V S
5958 180 230/50 44   + 18 -30 do 60 40000 V S
5938 162 115/60 39   + 12 -30 do 55 35000 V S
5900 206 115/60 46 +   17 -20 do 55 42500 V S
5908 206 115/60 47   + 17 -30 do 75 42500 V S
SERIES5600 / 135 x 135 x 38 [mm]
5656S 235 230/50 46   + 30 -35 do 70 45000 V S
5606S 270 115/60 50   + 26 -35 do 80 47500 V S
SERIA7000 / 150 x 172 x 38 [mm]
7056ES 330 230/50 52   + 29 -30 do 65 60000 V S
7006ES 390 115/60 57   + 24 -30 do 80 55000 V S
SERIES7800 / 150 Æ x 55 [mm]
7855ES 325 230/50 48   + 45 -30 do 50 40000 V L
7856ES 325 230/50 48   + 45 -30 do 70 40000 V L
7805ES 380 115/60 52   + 38 -30 do 75 40000 V L
7806ES 380 115/60 52   + 38 -30 do 90 40000 V L
SERIES7400 / 150 Æ x 55 [mm]
7450ES 390 230/50 58   + 47 -30 do 60 40000 A L
7400ES 445 115/60 60   + 46 -30 do 80 38000 A L
SERIES6000 / 172 Æ x 51 [mm]
6058ES 375 230/50 54   + 24 -30 do 70 48000 V S
6078ES 420 230/50 54   + 26 -30 do 75 37500 V S
6008ES 440 115/60 58   + 26 -30 do 70 42000 V S
6028ES 500 115/60 58   + 29 -30 do 75 40000 V S



Scheme


SERIES4600TZ

SERIES5900

SERIES5600

SERIES7000

SERIES7800

SERIES7400

SERIES6000

//
