Manufacturer: Ebmpapst

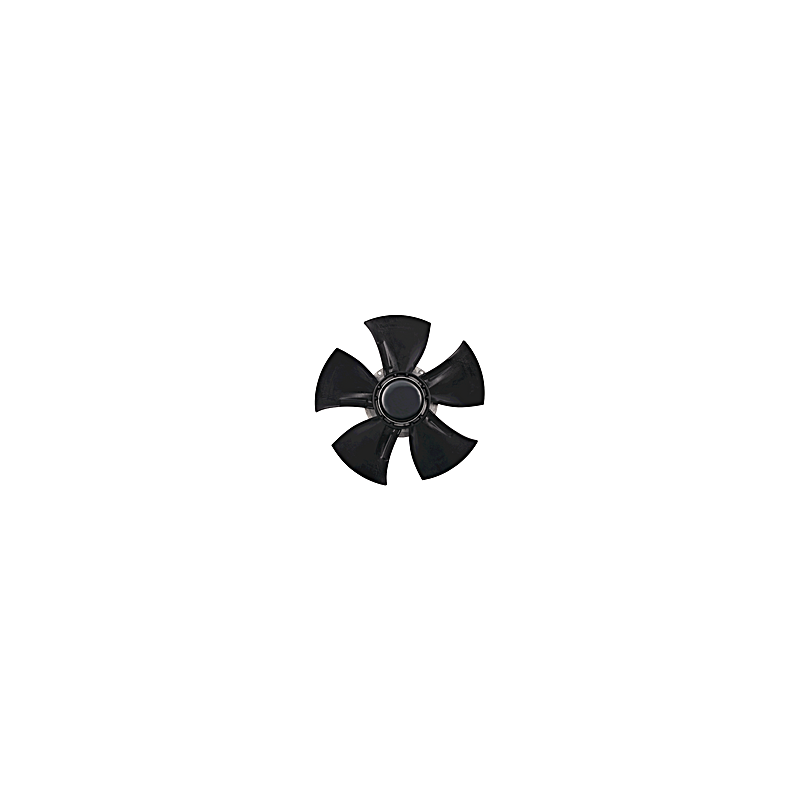

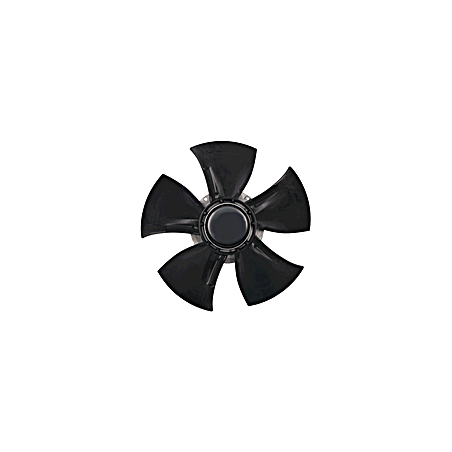

A3G500-AM56-35 EC axial fan 230V 750W

  • A3G500AM5635
  • Air flow direction A
  • Protection rating IP54
  • Frequency 50/60
  • Input power 750
  • Phase 1~
  • Nominal voltage 230
  • Speed 1420
  • Current draw 3,4
  • Min. ambient temperature -25
  • Max. ambient temperature 60
  • Certificate EAC
  • Size 500 mm
  • Fan type EC axial
  • Voltage range 200 ... 277
  • Rotor material Pressed, painted steel sheet, sprayed with PP plastic
  • Type of voltage AC
  • Motor protection Thermal Overload Protection (TOP) connected internally
  • Motor size 112
  • Insulation class B
  • Protection class against moisture (F) / environment (H) H2+A
  • Motor bearing Ball bearing
  • Maximum back pressure 175
  • Rotor surface Painted black
  • Electronics housing material Die-cast aluminum, painted black
  • Max. permitted ambient temp. (transport/storage) 80
  • Min. ambient temp. (transport/storage) -40
  • Weight 7,7 kg
  • Compliance with standards EN 61800-5-1 / UKCA / CE
