Manufacturer: Ebmpapst

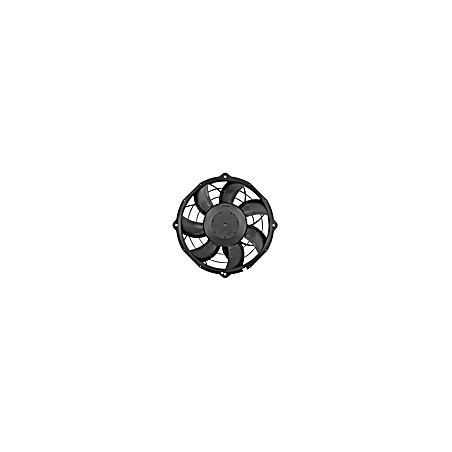

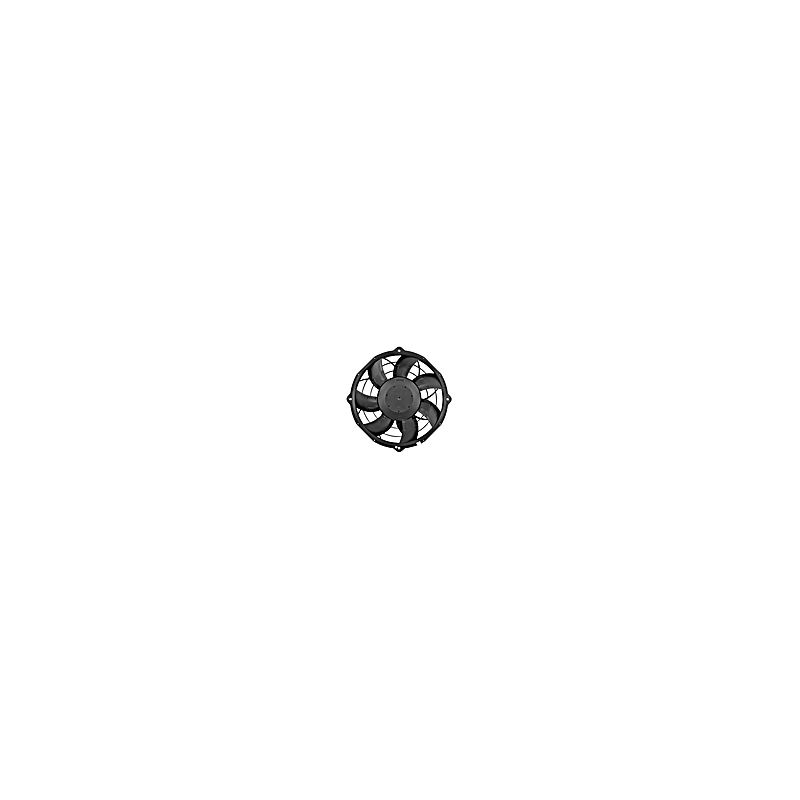

W3G630-CG98-80 EC axial fan 400V 730W

  • W3G630CG9880
  • Air flow direction A
  • Protection rating IP55
  • Frequency 50/60
  • Input power 730
  • Phase 3~
  • Nominal voltage 400
  • Speed 1160
  • Current draw 1,15
  • Max. ambient temperature 60
  • Certificate UL 1004-7 + 60730-1 / EAC / CSA C22.2 No. 77 + CAN/CSA-E60730-1
  • Size 630 mm
  • Fan type EC axial with wall ring
  • Voltage range 380 ... 480
  • Rotor material Pressed, painted steel sheet, sprayed with PP plastic
  • Type of voltage AC
  • Motor protection Thermal Overload Protection (TOP) connected internally
  • Motor size 112
  • Insulation class F
  • Protection class against moisture (F) / environment (H) H2+T
  • Motor bearing Ball bearing
  • Maximum back pressure 180
  • Rotor surface Painted black
  • Electronics housing material Die-cast aluminum, painted black
  • Max. permitted ambient temp. (transport/storage) 80
  • Min. ambient temp. (transport/storage) -40
  • Fan housing material Steel sheet, galvanized and coated with white aluminum plastic (RAL 9006)
  • Weight 25,2 kg
  • Compliance with standards EN 61800-5-1 / CE
