Manufacturer: Ebmpapst

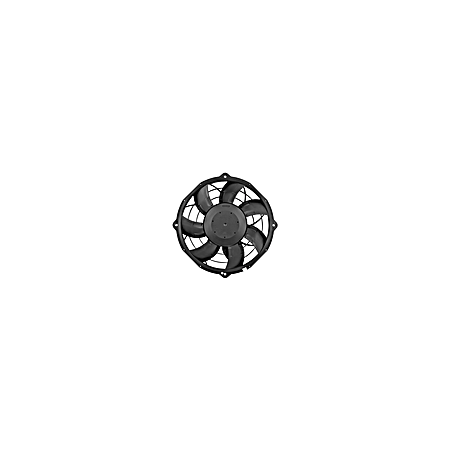

W3G630-GU23-91 EC axial fan 400V 3130W

  • W3G630GU2391
  • Air flow direction V
  • Protection rating IP44
  • Frequency 50/60
  • Input power 3130
  • Phase 3~
  • Nominal voltage 400
  • Speed 1510
  • Current draw 4,8
  • Max. ambient temperature 60
  • Certificate II 2G / EAC
  • Size 630 mm
  • Fan type EC axial with wall ring
  • Voltage range 380 ... 440
  • Rotor material Insert made of aluminum sheet, sprayed with PP plastic
  • Type of voltage AC
  • Motor protection Reverse polarity and locked rotor protection
  • Motor size 150
  • Insulation class F
  • Protection class against moisture (F) / environment (H) H2
  • Motor bearing Ball bearing
  • Maximum back pressure 290
  • Rotor surface Painted black
  • Electronics housing material Die-cast aluminum, painted black
  • Max. permitted ambient temp. (transport/storage) 80
  • Min. ambient temp. (transport/storage) -40 / -55
  • Fan housing material Galvanized steel sheet covered with black plastic (RAL 9005)
  • Weight 45,16 kg
  • Compliance with standards EN 14986; EN 60079-0; EN 60079-1; EN 60079-7; EN 60079-11; EN 61800-5-1 / CE
