Manufacturer: FANDIS

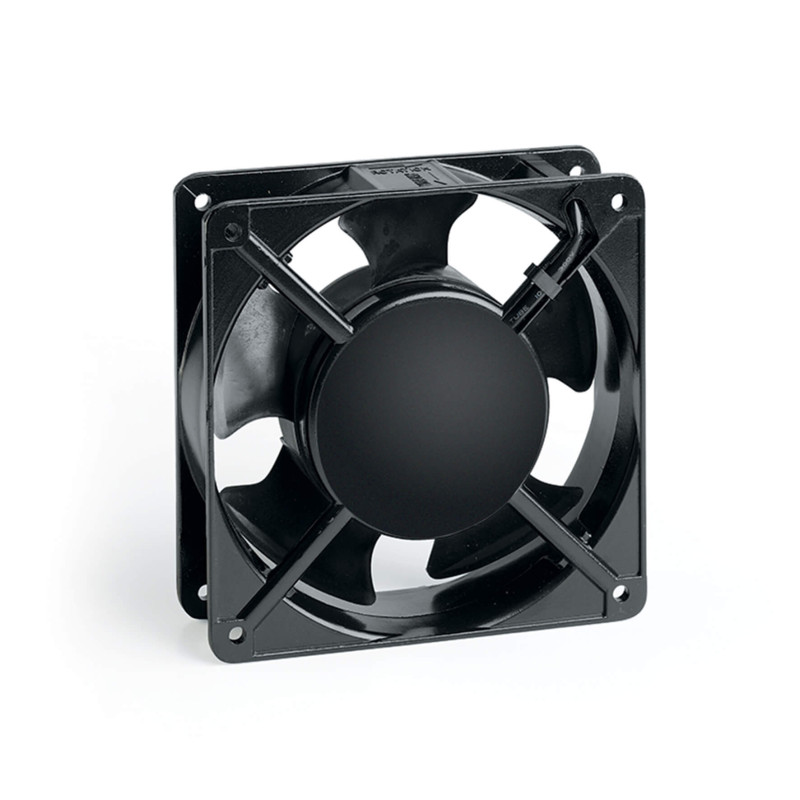

A12B05HTBW00 AC Axial Fan 24V 14W

  • A12B05HTBW00
  • Air flow direction Exhaust through brackets
  • Dimensions 120 x 120 x 38 mm
  • Rated voltage 24
  • Housing material Odlew aluminium
  • Protection rating IP20
  • Frequency 50
  • Input power 14
  • Speed 2550
  • Current draw 0,8
  • Air flow 141
  • Certificate CE; UKCA
  • Mounting method screws
  • Static Pressure 62
  • Noise Level 45
  • Fan type AC axial
  • Voltage range 19-26
  • Type of voltage AC
  • Motor protection Impedance protection
  • Insulation class A
  • Motor bearing Ball bearing
  • Electrical hookup Fast-On 3x0.5mm
  • Working temperature -10÷60 °C
