Manufacturer: FANDIS

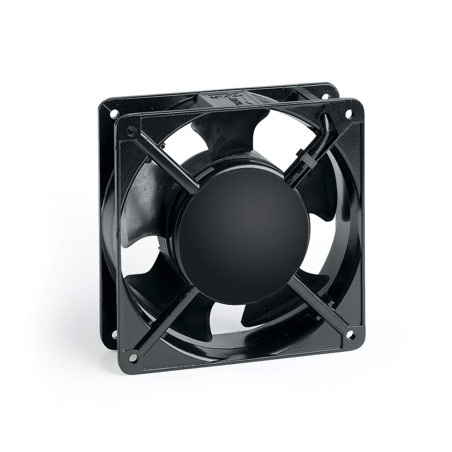

A12B12HTBMT0 AC Axial Fan 115V 15W

  • A12B12HTBMT0
  • Air flow direction Exhaust through brackets
  • Dimensions 120 x 120 x 38 mm
  • Rated voltage 115
  • Housing material Odlew aluminium
  • Protection rating IP44
  • Frequency 50
  • Input power 17
  • Speed 2700
  • Current draw 0,1
  • Air flow 150
  • Certificate CE; UKCA
  • Mounting method screws
  • Static Pressure 64
  • Noise Level 42
  • Fan type AC axial
  • Voltage range 103-126
  • Type of voltage AC
  • Motor protection Impedance protection
  • Insulation class F
  • Motor bearing Ball bearing
  • Protection class I
  • Electrical hookup Fast-On 3x0.5mm
  • Storage temperature -40÷90 °C
  • Working temperature -40÷90 °C
