Manufacturer: FANDIS

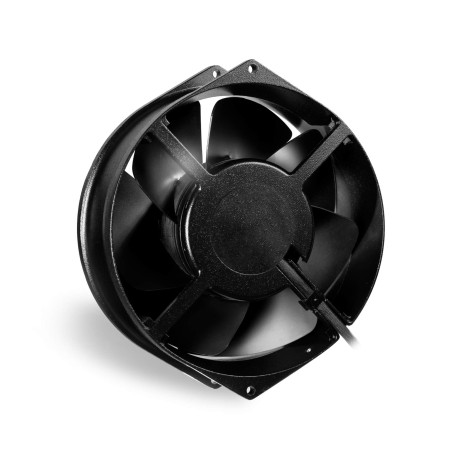

A17M12SWBM00 AC Axial Fan 115V 42W

  • A17M12SWBM00
  • Air flow direction Exhaust through brackets
  • Dimensions 172 x 150 x 55 mm
  • Rated voltage 115
  • Housing material Odlew aluminium
  • Protection rating IP44
  • Frequency 50
  • Input power 42
  • Speed 2800
  • Current draw 0,52
  • Air flow 331
  • Certificate CE; cURus; UKCA
  • Mounting method screws
  • Static Pressure 137
  • Noise Level 49
  • Fan type AC axial
  • Voltage range 103-126
  • Type of voltage AC
  • Motor protection Thermal protection
  • Insulation class A
  • Motor bearing Ball bearing
  • Protection class I
  • Electrical hookup Wires
  • Storage temperature -40÷80 °C
  • Working temperature -40÷70 °C
