Manufacturer: DetasUltra

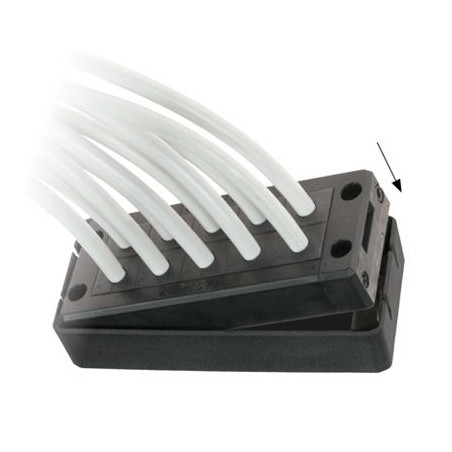

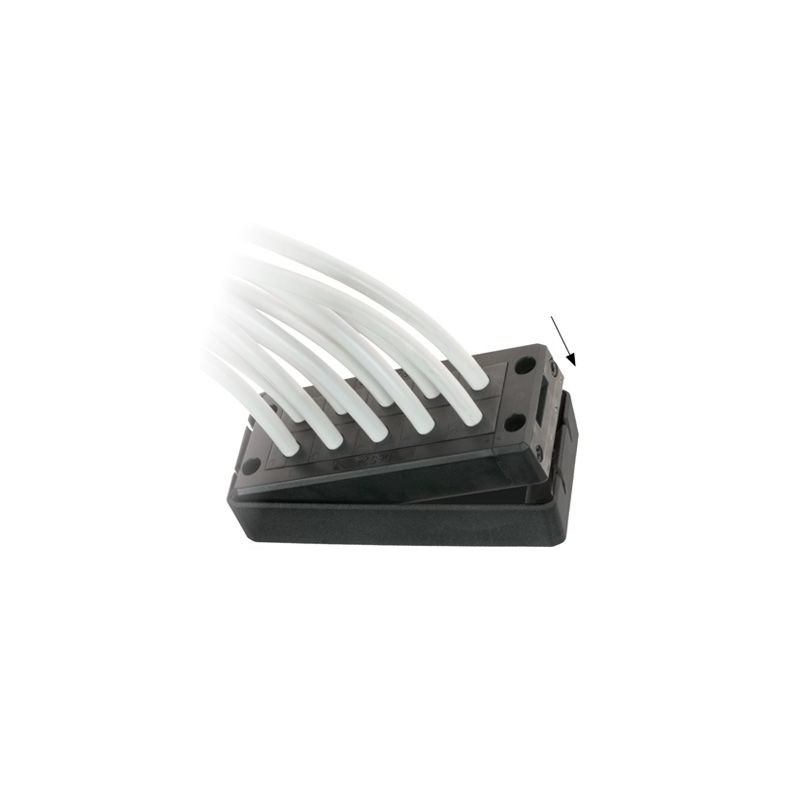

DES FLAP - Snap mounting frames

  • 1731031008
  • Product Type Snap-in mounting frames
  • Dimensions 81,1 x 68,7 x 34,5
  • Hole 40 x 39

The DES FLAP series allows DES 24, 16, 10, and Q frames to be snapped together and is particularly suitable if the flexibility of mounting grommet frames is to be exploited.

  • Quick installation for DES series
  • Gasket included
  • IP54
  • IP54 certified
  • Material: PP+GF
  • Flammability: self-extinguishing according to UL94-V0
  • Temperature: -40°C... +155°C (static)
  • Features: halogen-free, silicone-free,flame class V0 both colors, comply with ASTM IRM 903 , UL 157
Model Code Max. opening [mm] Dimensions [mm]
DES FLAP Q 1731031008 40 x 39 81,1 x 68,7 x 34,5
DES FLAP 10 1731031010 63 x 39 106,1 x 68,7 x 34,5
DES FLAP 16 1731031016 86 x 39 127,1 x 68,7 x 34,5
DES FLAP 24 1731031024 112 x 36 153,1 x 68,7 x 34,5
