A12B23STBA00 Compact fan
A12B23STBA00 Compact fan

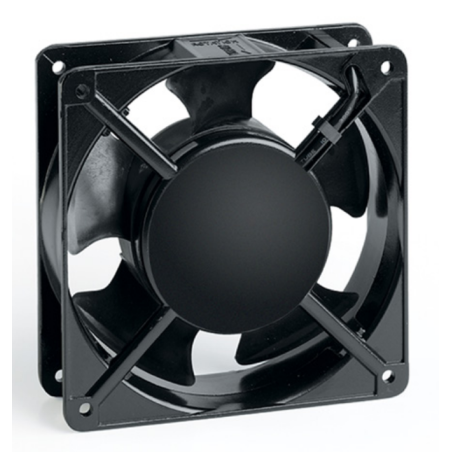

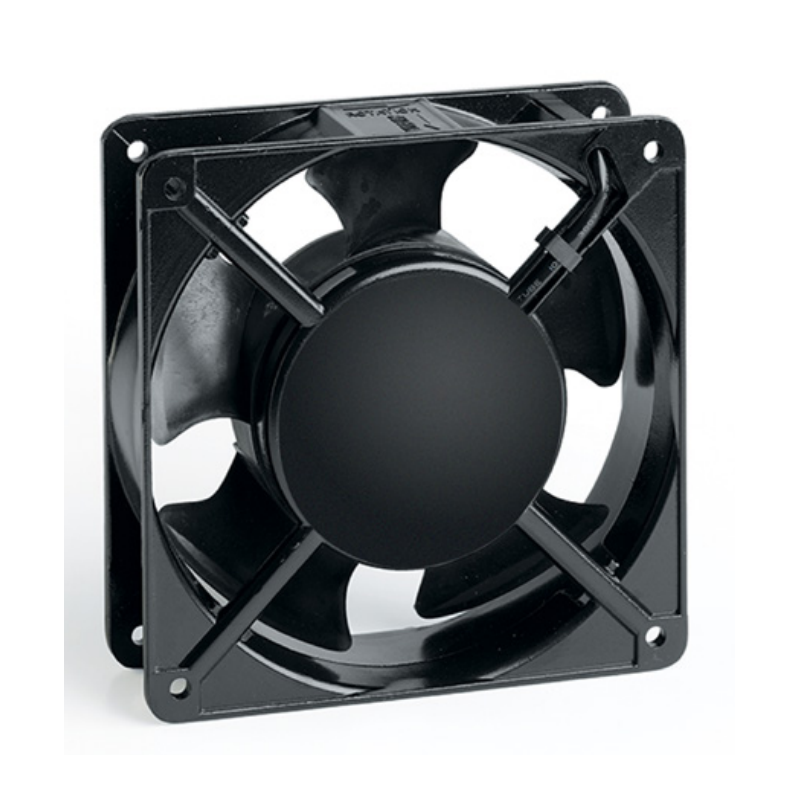

A12B23STBA00 AC axial fan 230V 21W

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: FANDIS

A12B23STBA00 AC axial fan 230V 21W

  • A12B23STBA00
Short description:

Prices for larger quantities available on request.

  • Air flow direction Exhaust through brackets
  • Dimensions 120 x 120 x 38 mm
  • Rated voltage 230
    230 V AC
  • Housing material Odlew aluminium
  • Protection rating IP20
  • Frequency 50
  • Input power 21
  • Speed 2400
  • Current draw 0,17
  • Air flow 163
  • Certificate CE; cURus; UKCA; TÜV
  • Mounting method screws
  • Static Pressure 60
  • Noise Level 46.4
  • Fan type AC axial
  • Voltage range 220-240
  • Type of voltage AC
  • Motor protection Impedance protection
  • Motor bearing Ball bearing
  • Protection class I
  • Electrical hookup Fast-On 3x0.5mm
  • Storage temperature -40÷70 °C
  • Working temperature -10÷70 °C
43.05 PLN
43.05 PLN Gross price / pcs.
35.00 PLN Net price / pc.
Tax included
Availability: Available quantity: 1498
