A12B23STBW00 Compact fan
A12B23STBW00 Compact fan

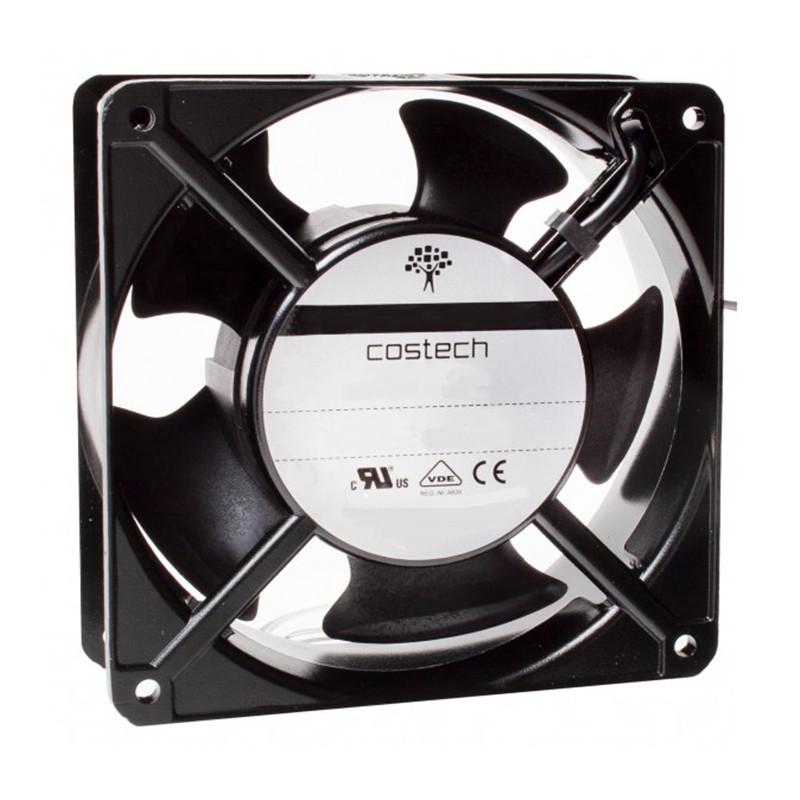

A12B23STBW00 AC axial fan 230V 21W

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: FANDIS

A12B23STBW00 AC axial fan 230V 21W

  • A12B23STBW00
Short description:

Prices for larger quantities available on request.

  • Air flow direction Exhaust through brackets
  • Dimensions 120 x 120 x 38 mm
  • Rated voltage 230
    230 V AC
  • Housing material Odlew aluminium
  • Protection rating IP20
  • Frequency 50
  • Input power 22
  • Speed 2700
  • Current draw 0,14
  • Air flow 143
  • Certificate CE; cURus; UKCA; VDE
  • Mounting method screws
  • Static Pressure 62
  • Noise Level 47
  • Fan type AC axial
  • Voltage range 216-244
  • Type of voltage AC
  • Motor protection Impedance protection
  • Insulation class A
  • Motor bearing Ball bearing
  • Protection class I
  • Electrical hookup Fast-On 3x0.5mm
  • Storage temperature -40÷70 °C
  • Working temperature -10÷60 °C
0.00 PLN
0.00 PLN Gross price / pcs.
0.00 PLN Net price / pc.
Tax included

Availability: Please be advised that this product is out of stock

You can place a pre-order, report your interest in the product by clicking the "Ask for availability" button.

Out of stock
ASK FOR THE PRODUCT close
Thank you for sending your message. We will respond as soon as possible.
ASK FOR THE PRODUCT close
Browse

Add to Wishlist

You must be logged in

  • Air flow direction Exhaust through brackets
  • Dimensions 120 x 120 x 38 mm
  • Rated voltage 230
    230 V AC
  • Housing material Odlew aluminium
  • Protection rating IP20
  • Frequency 50
  • Input power 22
  • Speed 2700
  • Current draw 0,14
  • Air flow 143
  • Certificate CE; cURus; UKCA; VDE
  • Mounting method screws
  • Static Pressure 62
  • Noise Level 47
  • Fan type AC axial
  • Voltage range 216-244
  • Type of voltage AC
  • Motor protection Impedance protection
  • Insulation class A
  • Motor bearing Ball bearing
  • Protection class I
  • Electrical hookup Fast-On 3x0.5mm
  • Storage temperature -40÷70 °C
  • Working temperature -10÷60 °C
