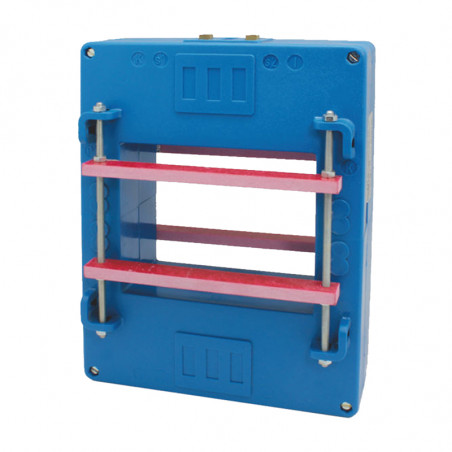

TAT129 current transformer for a 127x105mm rail

Technical Data

Thermoplastic material UL94-V0
Operating frequency 50-60Hz
Voltage 0.72kV
Test voltage 3kV * 1’50Hz
Insulation Klasa E
Protection degree IP 20
Continuous overcurrent 1.2In
Rated short-time thermal current (I th) 80 In
Rated dynamic current (I dyn) 2.5 x I th
Safety factor N<5
max. power dissipation (max range value) <40W
Operating temperature -25 +50o C
Storage temperature -40 +80o C
Manufactured according to

IEC/E N 60044-1,
VDE, BS, UTE




SECONDARY 1 A

Ratio Burdens
[VA]		 Code
cl. 0.5 cl. 1
1000/5 A 25 50

TAT1291K0X05
1200/5 A 30 60

TAT1291K2X05
1500/5 A 35 70

TAT1291K5X05
2000/5 A 40 80

TAT1292K0X05
2500/5 A 50 100

TAT1292K5X05
3000/5 A 70 120

TAT1293K0X05
4000/5 A 80 150

TAT1294K0X05
5000/5 A 100 180

TAT1295K0X05
6000/5 A 100 180

TAT1296K0X05



SECONDARY 1 A

Ratio Burdens
[VA]		 Code
cl. 0.5 cl. 1
1000/1 A 25 50

TAT1291K0X01
1200/1 A 30 60

TAT1291K2X01
1500/1 A 35 70

TAT1291K5X01
2000/1 A 40 80

TAT1292K0X01
2500/1 A 50 100

TAT1292K5X01
3000/1 A 70 120

TAT1293K0X01
4000/1 A 80 150

TAT1294K0X01
5000/1 A 100 180

TAT1295K0X01
6000/1 A 100 180

TAT1296K0X01



SECONDARY 5 A

Ratio Code
VA Cl. 0,2 VA Cl. 0,5S VA Cl. 0,2S
1000/5A 5 TAT1291K0J05 5 TAT1291K0Y05 1 TAT1291K0S05
1500/5A 7.5 TAT1291K5J05 7.5 TAT1291K5Y05 5 TAT1291K5S05
2000/5A 10 TAT1292K0J05 10 TAT1292K0Y05 5 TAT1292K0S05
3000/5A 20 TAT1293K0J05 20 TAT1293K0Y05 10 TAT1293K0S05
4000/5A 30 TAT1294K0J05 30 TAT1294K0Y05 20 TAT1294K0S05
5000/5A 30 TAT1295K0J05 30 TAT1295K0Y05 20 TAT1295K0S05
6000/5A 30 TAT1296K0J05 30 TAT1296K0Y05 20 TAT1296K0S05



SECONDARY 1 A

Ratio Code
VA Cl. 0,2 VA Cl. 0,5S VA Cl. 0,2S
1000/1A 5 TAT1291K0J01 5 TAT1291K0Y01 1 TAT1291K0S01
1500/1A 7.5 TAT1291K5J01 7.5 TAT1291K5Y01 5 TAT1291K5S01
2000/1A 10 TAT1292K0J01 10 TAT1292K0Y01 5 TAT1292K0S01
3000/1A 20 TAT1293K0J01 20 TAT1293K0Y01 10 TAT1293K0S01
4000/1A 30 TAT1294K0J01 30 TAT1294K0Y01 20 TAT1294K0S01
5000/1A 30 TAT1295K0J01 30 TAT1295K0Y01 20 TAT1295K0S01
6000/1A 30 TAT1296K0J01 30 TAT1296K0Y01 20 TAT1296K0S01



SECONDARY 5 A - Protection

Ratio Code
VA Cl. 5P5 VA Cl. 5P10 VA Cl. 5P15
1000/5A 30 TAT1291K0K05 10 TAT1291K0L05 5 TAT1291K0M05
1200/5A 35 TAT1291K2K05 12 TAT1291K2L05 6 TAT1291K2M05
1500/5A 40 TAT1291K5K05 15 TAT1291K5L05 8 TAT1291K5M05
2000/5A 60 TAT1292K0K05 20 TAT1292K0L05 10 TAT1292K0M05
2500/5A 70 TAT1292K5K05 20 TAT1292K5L05 10 TAT1292K5M05
3000/5A 80 TAT1293K0K05 25 TAT1293K0L05 12 TAT1293K0M05
4000/5A 100 TAT1294K0K05 30 TAT1294K0L05 15 TAT1294K0M05
5000/5A 40 TAT1295K0K05 15 TAT1295K0L05 5 TAT1295K0M05
6000/5A 40 TAT1296K0K05 15 TAT1296K0L05 5 TAT1296K0M05



SECONDARY 1 A - Protection

Ratio Code
VA Cl. 5P5 VA Cl. 5P10 VA Cl. 5P15
1000/1A 30 TAT1291K0K01 10 TAT1291K0L01 5 TAT1291K0M01
1200/1A 35 TAT1291K2K01 12 TAT1291K2L01 6 TAT1291K2M01
1500/1A 40 TAT1291K5K01 15 TAT1291K5L01 8 TAT1291K5M01
2000/1A 60 TAT1292K0K01 20 TAT1292K0L01 10 TAT1292K0M01
2500/1A 70 TAT1292K5K01 20 TAT1292K5L01 10 TAT1292K5M01
3000/1A 80 TAT1293K0K01 25 TAT1293K0L01 12 TAT1293K0M01
4000/1A 100 TAT1294K0K01 30 TAT1294K0L01 15 TAT1294K0M01
5000/1A 40 TAT1295K0K01 15 TAT1295K0L01 5 TAT1295K0M01
6000/1A 40 TAT1296K0K01 15 TAT1296K0L01 5 TAT1296K0M01

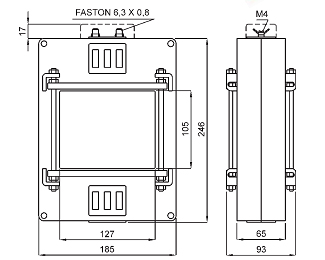

Dimensions

Przekładnik prądowy TAT129 na szynę 127x105mm
