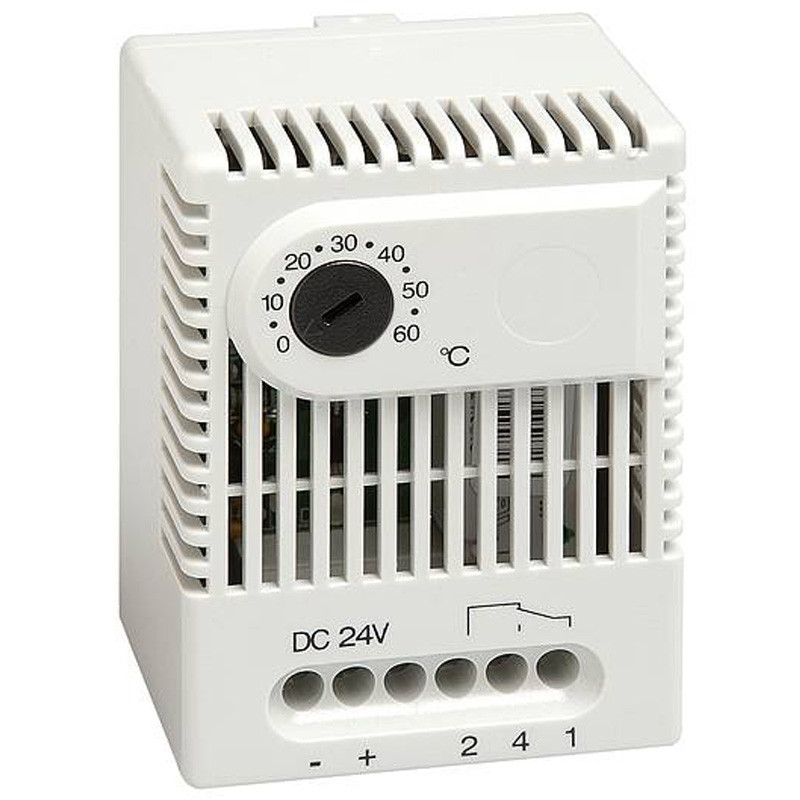

DC 24 V electronic thermostat ET 011
  • DC 24 V electronic thermostat ET 011

Photos are for informational purposes only. View product specification

DC 24 V electronic thermostat ET 011

DC 24 V electronic thermostat ET 011


High switch over current (DC)
Small hysteresis
Temperature set
Switch over contact

Electronic thermostat for DC 24V supplied devices. To control: heaters, ventilators, signalisation. It has small hysteresis. Because of that switching over is more accurate.



Technical data

Switching over temperature difference
ok.3K
Sensor type
PTC
Contact type
Switch over contact
contact resistance
<10mOhm
Life time
< 100 000 cycles
Max contact current
DC 28 V 16A (resistant load)
EMC
EN 55014-1-2, EN 61000-3-2, EN 610003-3
Terminals
5 pole   2,5mm2
Mounting
For DIN 35 mm bus, EN 50022
Casing
plastic  UL94V-0, light grey
Dimensions
67x50x46 mm
Weight
ok.80g
Assembly
Verticaly
Operation temperature
-45 do +70°C
IP
IP20
Certyficates
VDE and UL


Catalogue number

Article numberPower supplyTemperature range
01190.0-00 DC 24 V (DC 20-28 V) 0 - 60°C
