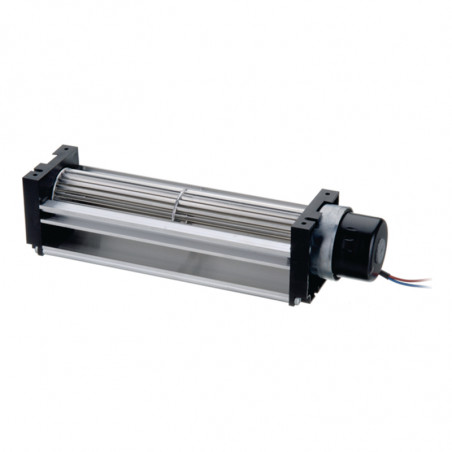

DC ventilators with a transverse air flow

DC ventilators with a transverse air flow

Table. Technical data

TypeEfficiency
[m3/h]
Voltage
[VDC]
Noise level
[dB(A)]
bearingInput power
[W]
Operation temperature
[°C]
Operation time @
[40°C/h]
Air flow direction Terminal type
slideball
SERIA QG 030 / 200...415 x 50 x 48 [mm]
QG030-148/12 75 12 49   + 6,2 -20 do 60 30000 R L
QG030-198/12 100 12 51   + 8 -20 do 60 30000 R L
QG030-303/12 140 12 51   + 8,7 -20 do 60 30000 R L
QG030-353/12 155 12 51   + 9,6 -20 do 60 30000 R L
QG030-148/14 75 24 49   + 6,2 -20 do 60 30000 R L
QG030-198/14 100 24 51   + 8 -20 do 60 30000 R L
QG030-303/14 140 24 51   + 8,7 -20 do 60 30000 R L
QG030-353/14 155 24 51   + 9,6 -20 do 60 30000 R L



Scheme QG 030

//
