Manufacturer: Sisel

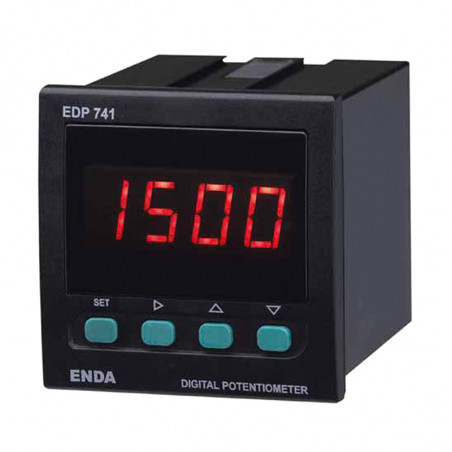

EDP741 Signal Signal

Dimensions: 72x72mm.
Four-digit display.
Output signal 0-10V or 0-20mA (for EDP741C)
Possibility of connecting current from a shunt or transformer.
Programmable range from 5 to 9999.
Adjustable display value range.
Compliance with European Standards.


Technical Data:
- Dimensions 72x72x97mm
- Supply voltage 230VAC, +10%, -20%, 50/60Hz;
9-30VDC/7-24VAC±10%SMPS
- Power consumption 7VA
- Output signal 0-10V, 20mA
- Protection level IP65
- Operating temperature 0-50 OC
- Weight 350g
- Housing Plastic
Type Supply voltage Output signal

EDP741

230VAC, 0-10V

EDP741-SM

9-30VDC/7-24VAC 0-10V

EDP741C

230VAC, 0-20mA

EDP741C-SM

9-30VDC/7-24VAC 0-20mA

Dimensions

EDP741, EDP741-SM, EDP741C, EDP741C-SM dimensions



Pin diagram:

EDP741, EDP741-SM, EDP741C, EDP741C-SM pin diagram
