Product overview EFD cores
  • Product overview EFD cores

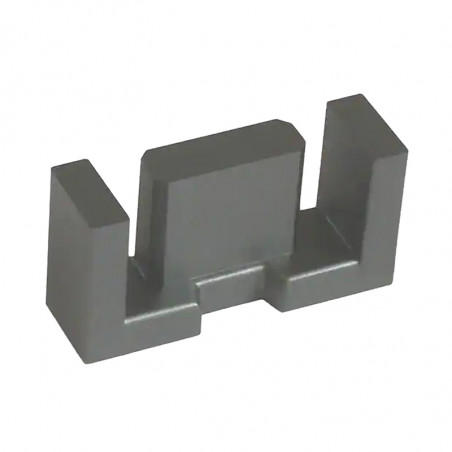

Photos are for informational purposes only. View product specification

Product overview EFD cores

Product overview EFD cores

Core typeVe
[mm3]
Ae
[mm2]
Mass
[g]
Datasheets

EFD10/5/3

171 7.2 0.45 EFD10.pdf

EFD12/6/3.5

325 11.4 0.9 EFD12.pdf

EFD15/8/5

510 15.0 1.4 EFD15.pdf

EFD20/10/7

1460 31.0 3.5 EFD20.pdf

EFD25/13/9

3300 58.0 8 EFD25.pdf

EFD30/15/9

4700 69.0 12 EFD30.pdf

Send an inquiry

Are you interested in this product? Do you need additional information or individual pricing?

Contact us
