Główny wyłącznik prądowy Ex 40A
Główny wyłącznik prądowy Ex 40A

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: Eaton / CEAG

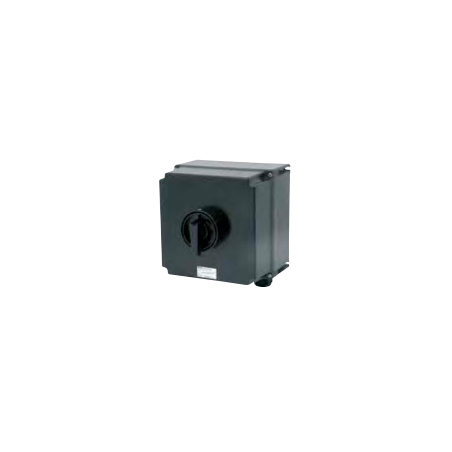

Main circuit breaker Ex 40A GHG 263 0048 R0004

  • GHG 263 0048 R0004
  • Material
  • Rated current
  • Contacts 1NO + 1NC
  • Switching
  • Cable gland

Safety for your protection

CEAG main circuit breakers are available in various versions and can be secured against accidental switching on thanks to an integrated lock that allows up to three padlocks to be fitted in the OFF position.

Full switching capacity for motors in the AC-3 category

Full switching capacity for motors in the AC-3 category and insulation properties according to EN 60947-4-1, with mandatory opening of the main contacts according to EN 60204-1, are just some of the important features offered by CEAG main circuit breakers.

The main circuit breakers are characterized by user-friendly installation and easily accessible connection terminals.

Versions made of impact-resistant polyamide or glass-fiber reinforced polyester provide a high IP66 degree of protection. for currents up to 180 A.

They can be optionally supplied with screw-on or snap-on flanges made of plastic or brass. They can be equipped with screw-on flanges.

Main circuit breakers >180 A are manufactured in metal housings. Internationally approved.

Technical parameters:

Parameter Specification
Marking according to 2014/34/EU II 2 G Ex de IIC T6 / II 2 D Ex tD A21 IP66 T80 °C
EC-Type Examination Certificate PTB 99 ATEX 1161
IECEx Certificate of Conformity BKI 07.0012
IECEx Marking Ex ed ia IIC T6 / Ex tD A21 IP66 T55 °C
Permissible Ambient Temperature –20 °C to +40 °C*
Rated voltage up to max. 690 V
Rated current max. 40 A
Frequency 50/60 Hz
Rated making/breaking capacity AC-3 according to EN 60947-3 Ue 230 V / Ie 40 A
Ue 400 V / Ie 40 A
Ue 500 V / Ie 40 A
Ue 690 V / Ie 32 A
Fuse fuse up to 400 V AC: 80 A gG
up to 500 V AC: 80 A gG
up to 690 V AC: 63 A gG
Connectors – main contact 2 x 16 mm²
Protection class I
Protection degree according to EN 60529 IP66
Cable glands / mounting holes M25 gland – see order details
M40 gland – see details
Option: metal flange with thread
Weight 3-pole version: approx. 2.30 kg
6-pole version: approx. 6.50 kg
Housing material Glass fiber reinforced polyester
Housing color Black
Padlockable Can be locked in the OFF position with 3 commercially available padlocks (⌀ max. 6 mm)

* Other temperature ranges available upon request
