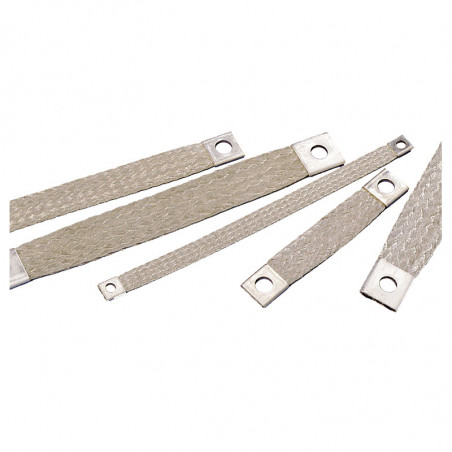

Flexible grounding straps

Conception and construction
Grounding connections are made from flat tinned copper wattles. The diameter of a single cord is 0.20mm.
Tips are made from tinned copper straps.

Typical sections 10, 16, 25, 35 oraz 50mm2
Distance between holes LEA: 100-150-200-250-300 mm
Cord diameter: 0,15mm (przekrój 10mm2) oraz 0,2mm
Tape thickness 0,5mm
Hole diameter 6,5 8,5 i 10,5mm
Option: Other sizes for request
Technical specification wires
Copper classification according to French standard NF EN 13602 (NFC 31 111)
Marking Cu-ETP
Minimum copper content 99,9 %
Max. resistivity in 20 C 1,7241 µm.cm (100% I ACS) or 0,017241 ? mm2/m (100% I ACS)
Copper specification Mechanical resistance min. 200 Mpa

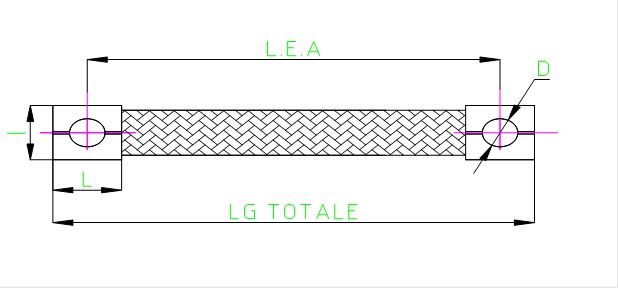

Nazwa Section
[mm2]		 Length LEA
[mm]		 Length all
[mm]		 Tip size Diameter D
[mm]
TMS 10-100 10 100 112 17x22 6,5
TMS 10-150 10 150 162 17x22 6,5
TMS 10-200 10 200 212 17x22 6,5
TMS 10-250 10 250 262 17x22 6,5
TMS 10-300 10 300 312 17x22 6,5
TMS 16-100 16 100 120 17x22 8,5
TMS 16-150 16 150 170 17x22 8,5
TMS 16-200 16 200 220 17x22 8,5
TMS 16-250 16 250 270 17x22 8,5
TMS 16-300 16 300 320 17x22 8,5
TMS 25-100 25 100 125 21x23 10,5
TMS 25-150 25 150 175 21x23 10,5
TMS 25-200 25 200 225 21x23 10,5
TMS 25-250 25 250 275 21x23 10,5
TMS 25-300 25 300 325 21x23 10,5
TMS 30-100 30 100 125 21x23 10,5
TMS 30-150 30 150 175 21x23 10,5
TMS 30-200 30 200 225 21x23 10,5
TMS 30-250 30 250 275 21x23 10,5
TMS 30-300 30 300 325 21x23 10,5
TMS 35-100 35 100 125 21x23 10,5
TMS 35-150 35 150 175 21x23 10,5
TMS 35-200 35 200 225 21x23 10,5
TMS 35-250 35 250 275 21x23 10,5
TMS 35-300 35 300 325 21x23 10,5
TMS 50-100 50 100 125 25x25 10,5
TMS 50-150 50 150 175 25x25 10,5
TMS 50-200 50 200 225 25x25 10,5
TMS 50-250 50 250 275 25x25 10,5
TMS 50-300 50 300 325 25x25 10,5
