Manufacturer: STEGO

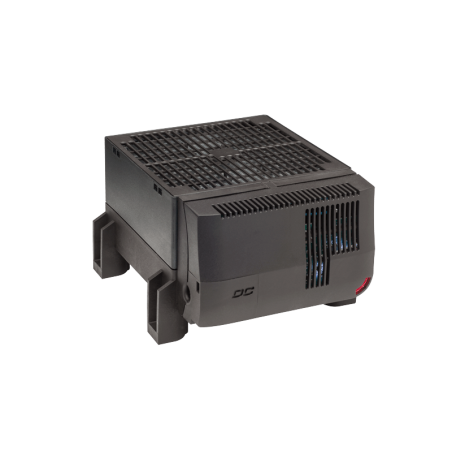

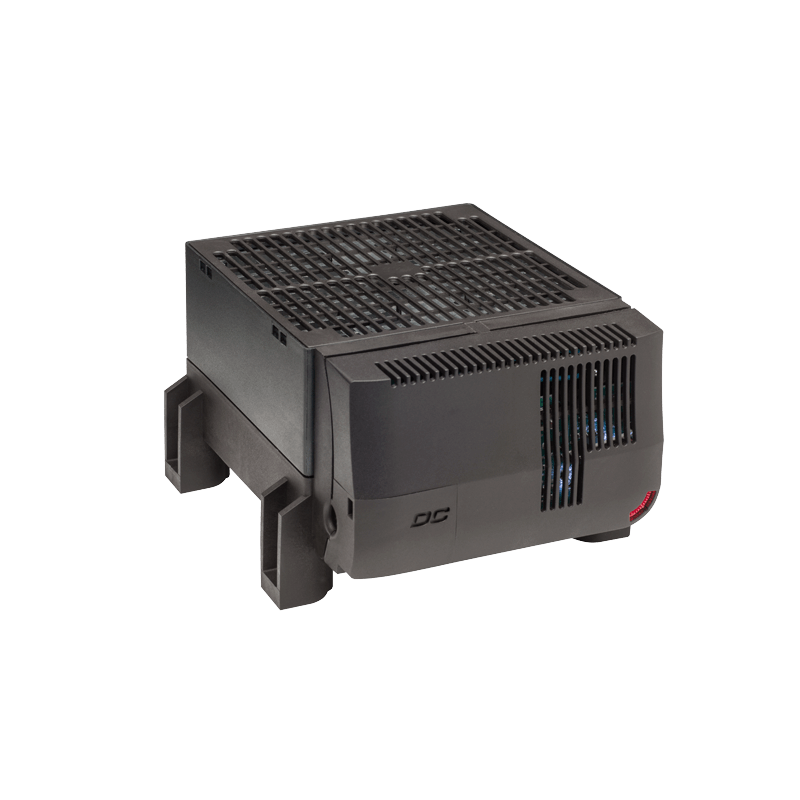

DCR 030 - Heater with fan for control cabinet - 03092.1-13

  • 03092.1-13
  • Product Type Grzałka z Wentylatorem
  • Supply voltage 24 V DC
  • Dimensions 99 x 168 x 179 mm
  • Housing material Tworzywo sztuczne zgodne z UL94 V-0, czarne
  • Protection rating IP20
  • Heating power 200 W
  • Electrical hookup 2-biegunowy zacisk połączeniowy "Push-In" Skrętka1 1,5 mm² (AWG 16) z odciążeniem maks. 2,5 mm² (AWG 12)
  • Weight 1300 g

This resistive insert with fan is designed for connection to a DC power supply. Optionally with an adjustable integrated thermostat or humidistat. Accessories: external sensor. Mounting: Mounts to the housing base using screws.

  • Push-in terminals for quick electrical connection
  • User safety: Safe to touch thanks to the touch-sensitive plastic housing
  • Accessories: external sensor
  • Integrated switching module: Thermostat or humidistat
Less
Read more

Send an inquiry

Are you interested in this product? Do you need additional information or individual pricing?

Contact us
ASK FOR THE PRODUCT close
Thank you for sending your message. We will respond as soon as possible.
ASK FOR THE PRODUCT close
Browse
send an inquiry

Add to Wishlist

You must be logged in

  • Product Type Grzałka z Wentylatorem
  • Supply voltage 24 V DC
  • Dimensions 99 x 168 x 179 mm
  • Housing material Tworzywo sztuczne zgodne z UL94 V-0, czarne
  • Protection rating IP20
  • Heating power 200 W
  • Electrical hookup 2-biegunowy zacisk połączeniowy "Push-In" Skrętka1 1,5 mm² (AWG 16) z odciążeniem maks. 2,5 mm² (AWG 12)
  • Weight 1300 g

This resistive insert with fan is designed for connection to a DC power supply. Optionally with an adjustable integrated thermostat or humidistat. Accessories: external sensor. Mounting: Mounts to the housing base using screws.

  • Push-in terminals for quick electrical connection
  • User safety: Safe to touch thanks to the touch-sensitive plastic housing
  • Accessories: external sensor
  • Integrated switching module: Thermostat or humidistat
