Manufacturer: STEGO

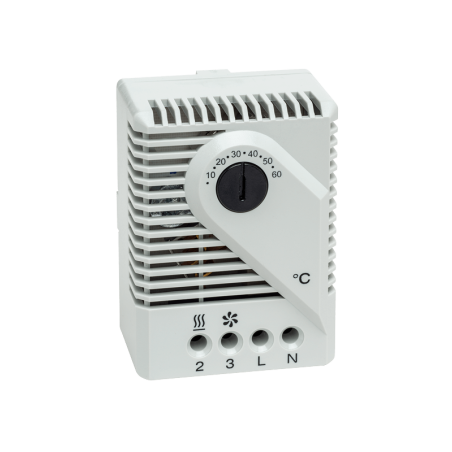

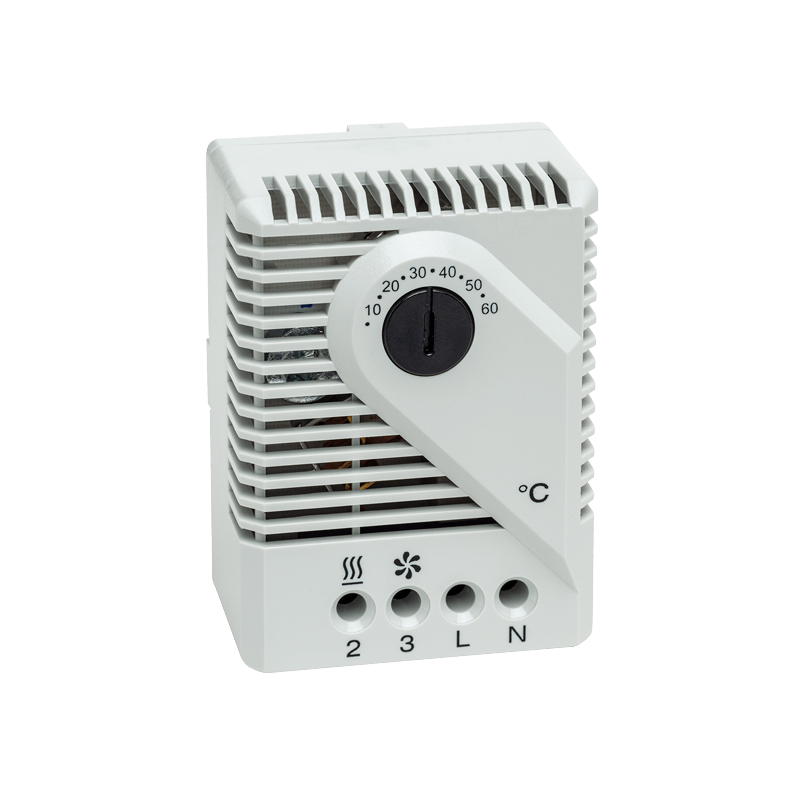

FZK 011 - Mechanical Thermostat - 01170.0-02

  • 01170.0-02
  • Setting range -20 °C - 35 °C
  • Supply voltage 230 V AC
  • Dimensions 67 x 50 x 38 mm
  • Protection rating IP20
  • Changeover contact Kontakt sprężynowy
  • Weight 100 g
  • Working temperature -45 °C - 65 °C

The set value corresponds to the upper switching point, where the NC opening contact is open. The set value, reduced by the 5 K switching temperature difference (and tolerances), corresponds to the lower switching point, where the opening contact closes. The mechanical thermostat is used to control heating, cooling units, filter fans, or signal transmitters.

  • Adjustable temperature
  • Low hysteresis enables precise control
  • High switching capacity
  • Changeover contact (heating or cooling)
  • Fixed
