Nagrzewnica indukcyjna EHX-03A (400 - 440V / 40A) 100550
Nagrzewnica indukcyjna EHX-03A (400 - 440V / 40A) 100550
Nagrzewnica indukcyjna EHX-03A (400 - 440V / 40A) 100550

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: TM Induction Heating

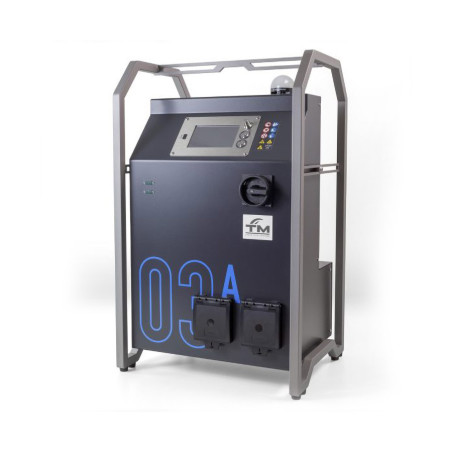

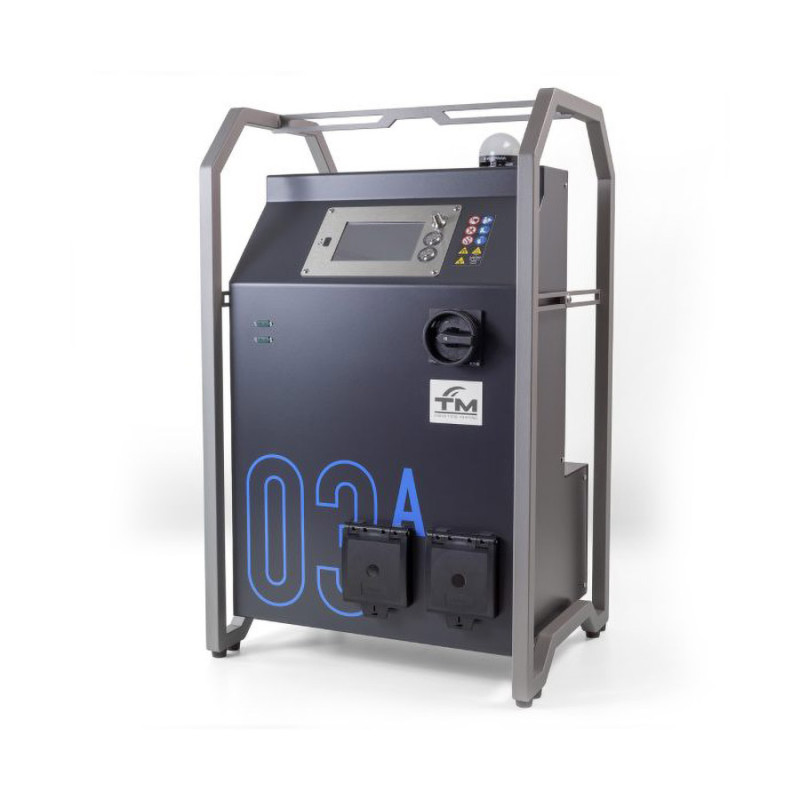

Induction heater EHX-03A (400 - 440V / 40A) 100550

  • 100550
  • Voltage 400V
  • Maximum current 40A
  • Frequency 50/60 Hz

The EHX-03A is a powerful and portable induction heater, suitable for applications requiring frequent assembly and/or disassembly. It is designed for use with air-cooled inductors. Compared to the previous generation of medium-frequency generators, the EHX-03A represents a significant advancement. We have achieved greater output power in a three-times smaller footprint than its predecessor.

Using a flexible inductor, it is possible to heat components with varying geometries, such as gears, clutches, and bearings. A fixed inductor, on the other hand, will allow you to perform heating cycles on specific parts in the same way every time.

Specifications

Input (Power)
Voltage 400 - 480 V
Current (max) 32 / 40 A
Frequency 50 / 60 Hz
Output (Generated Power)
Voltage (max) 540 - 660 V
Current (max) 57 A
Output power (max) 22 - 30 kW
Other
Dimensions (L x W x H) 440 x 350 x 712 mm
Weight 39 kg
Less
Read more

Send an inquiry

Are you interested in this product? Do you need additional information or individual pricing?

Contact us
ASK FOR THE PRODUCT close
Thank you for sending your message. We will respond as soon as possible.
ASK FOR THE PRODUCT close
Browse
send an inquiry

Add to Wishlist

You must be logged in

  • Voltage 400V
  • Maximum current 40A
  • Frequency 50/60 Hz

The EHX-03A is a powerful and portable induction heater, suitable for applications requiring frequent assembly and/or disassembly. It is designed for use with air-cooled inductors. Compared to the previous generation of medium-frequency generators, the EHX-03A represents a significant advancement. We have achieved greater output power in a three-times smaller footprint than its predecessor.

Using a flexible inductor, it is possible to heat components with varying geometries, such as gears, clutches, and bearings. A fixed inductor, on the other hand, will allow you to perform heating cycles on specific parts in the same way every time.

Specifications

Input (Power)
Voltage 400 - 480 V
Current (max) 32 / 40 A
Frequency 50 / 60 Hz
Output (Generated Power)
Voltage (max) 540 - 660 V
Current (max) 57 A
Output power (max) 22 - 30 kW
Other
Dimensions (L x W x H) 440 x 350 x 712 mm
Weight 39 kg
