Manufacturer: OMERIN

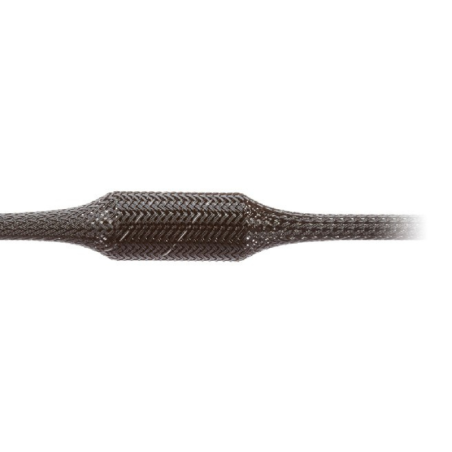

Siligaine TN FR

Flame-retardant, braided, flexible polyester sleeve

Technical data

  • Continuous operating temperature: from -50°C to +150°C
  • Peaks at +175°C
  • Expandable sleeve
  • Flame resistant
  • Excellent resistance to abrasion
  • Excellent cutting resistance
  • Excellent resistance to humidity and mould
  • Lightweight
  • Halogen-free
  • Highly flexible

Product

  • Colour: black with white tracer

Packaging

  • Diameters from 3 to 8 mm: 100 m spools
  • Diameters from 10 to 50 mm: 50 m spools

Standards

  • Classification R22: HL3, R23: HL3 according to EN 45545-2
  • UL 1441

Applications

  • Protection of assemblies subject to severe mechanical constraints (abrasion, cutting, alternate bendings)
  • Railway and electronic industries

Options

  • Other colours – please consult us
  • Other diameters – please consult us
  • Sleeves cut to required lengths – please consult us
Part number Nominal internal diameter** (mm) Minimum internal diameter** (mm) Maximum internal diameter** (mm) Approximate linear weight (kg/km)
P0903004 3 2 5 3.6
P0903002 4 3 7 4.3
P0903005 5 4 9 4.9
P0903006 6 5 11 5.8
P0903007 8 7 13 7.2
P0903008 10 9 15 8.7
P0903009 12 11 17 10.3
P0903001 15 13 20 11.3
P0903010 20 18 25 13.1
P0903012 25 22 30 18.0
P0903011 30 27 40 21.8
P0903013 40 35 50 29.5
P0903014 50 45 60 36.1
