LED lamp - LED 025

LED lamp - LED 025

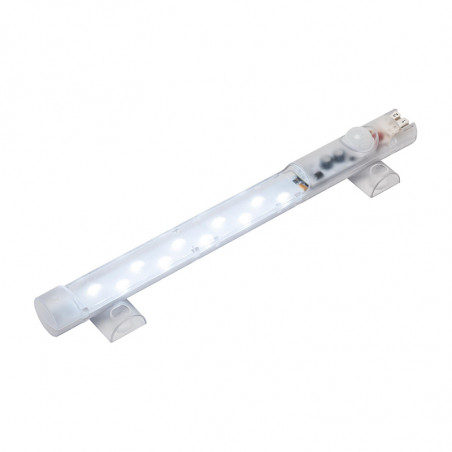

Zdjęcie 1: LED 025 with on/off switch and magnet fixing
Zdjęcie 2: LED 025 with movement sensor and screw fixing


Wide voltage range
Integrated power unit
Long-lived and maintenance-free by LED technology
Daisy chain
On/off switch or movement sensor
Magnet, screw or clip fixing

The lamp series LED 025 is suitable for all types of panels and enclosures, especially where space is at a premium The lamps have a very long service life thanks to the use of LED technology. Three different fixing options provide more flexibility for installation. The power output allows up to 10 lamps to be connected to each other (12VDC versions up to 5 lamps). Both the power input and output connectors snap lock into their sockets. With the integrated power unit and the plugs the lamp can quickly be connected.



Lampa diodowa - LED 025


Technical data

Power consumption max. 5 W
Luminosity 400Lm at 120° (1,200Lm at 360° or equivalent 95W light bulb)
Lamp type LED, angle of radiation 120° light color: daylight, color temperature: 6,000K to 7,000K
Service life 60,000h at +20°C (+68°F)
Connection 2-pole connector with snap lock
AC: max. 2.5A / 240VAC, color: white
DC: max. 2.5A / 60VDC, color: blue
Mounting magnet fixing or screw fixing (M5), clip fixing (M6),
torque 2Nm max.
Casing plastic, transparent
Dimensions 351 x 34 x 32 mm (mocowanie magnetyczne)
351 x 36 x 32 mm (mocowanie śrubowe)
Operating/Storage temperature -30 to +60°C (-22 to +140°F) / -40 to +85°C (-40 to +185°F)
Protection type/Protection class IP20 / II (double insulated), 12VDC: IP20 / III (extra-low voltage)
Approvals APV + UL notification
Accessories plug male and female, power cables
and cascadable

Catalog number
Art. No.
Magnet fixing
Art. No.
Screw fixing
Operating voltageSwitchWeight (approx.)

02540.0-00

02540.0-01

AC 100-240 V, 50/60 Hz (min. AC 90 V, max. AC 265 V) on/off light switch 0,2 kg

02540.1-00

02540.1-01

DC 24-48 V (min. DC 20 V, max. DC 60 V) on/off light switch 0,2 kg

LED lamp - LED 025 - Accessories

Lampa diodowa - LED 025 - akcesoria


Power cables with plugs

Art. NoModelLenghtVoltage typeColorUse forApprovals2

244356

connection cable 2 x 1,5 mm2 with female connector 2,0 m AC connectors: white; cable: white power input VDE

244357

connection cable 2 x AWG 16 with female connector 2,0 m AC connectors: white; cable: white power input VDE + UL

244360

connection cable 2 x 1,5 mm  with female connector 2,0 m DC connectors: blue; cable: white power input VDE

244361

connection cable 2 x AWG 16 with female connector 2,0 m DC connectors: blue; cable: white power input VDE + UL

244358

connection cable 2 x 1,5 mm2 with 2 connectors 1,0 m AC connectors: white; cable: white daisy chain VDE

244359

connection cable 2 x AWG 16 with 2 connectors 1,0 m AC connectors: white; cable: white daisy chain VDE + UL

244362

connection cable 2 x 1,5 mm2 with 2 connectors 1,0 m DC connectors: blue; cable: white daisy chain VDE

244363

connection cable 2 x AWG 16 with 2 connectors 1,0 m DC connectors: blue; cable: white daisy chain VDE + UL


male / female connectors

Att. NoModelVoltage typeColorUse forApprovals

264057

female connector AC white power input VDE + UL

264058

male connector AC white power output VDE + UL

264059

female connector DC blue power input VDE + UL

264060

male connector DC blue power output VDE + UL

Compact fluorescent lamps and applications inside cabinets.

Kompaktowe lampy i fluorescencyjne do zastosowań wewnątrz szaf.


TypeVoltage [Vac]Frequency
[Hz]
Power
[W]
LEDWeight [kg]Certifications
QuantityColour
LED LAMPS

CLG-L235

230 50/60  5.0/5.0  8 White 0.200 CE

CLG-L235


TypLength
[mm]
Voltage [Vac]Frequency
[Hz]
Power
[W]
Type of lightCable length
[mm]
Certifications
LAMPY FLUORESCENCYJNE

CLG-R236

277 230 50 6 T5 / G5 1,3 CE GS

CLG-R238

354 230 50 8 T5 / G5 1,8 CE

CLG-R2313

581 230 50 13 T5 / G5 1,8 CE

CLG-T236

270 230 50 6 T4 / G5 1,8 CE GS

CLG-T238

390 230 50 8 T4 / G5 1,8 CE GS

CLG-T2312

425 230 50 12 T4 / G5 1,8 CE GS

CLG-T2316

516 230 50 16 T4 / G5 1,8 CE

CLG-T2320

616 230 50 20 T4 / G5 1,8 CE

CLG-SS2310

498 230 50 10 T8 / G13 CE

CLG-SF2310

498 230 50 10 T8 / G13 CE

Accessories for lamps
TypeDescription
CONNECTIVITY
CVL01-200 2000 mm
CVL01A-30 300 mm
MOUNTING MAGNETIC
CLG-TSM1 -

LED lamps


Świetlówki LED


TypLength
[mm]
Frequency
[Hz]
Power
[W]
Colour temperature
[K]
Brightness
[lm]
Certifications

TL-237-45PT

450 50/60  7.0 4,2 500 CE

TL-237-45WT

450 50/60  7.0 5 500 CE

TL-237-465WT

450 50/60  7.0 6,5 500 CE

TL-239-65WX

600 50/60  9.0 5 800 CE

TL-239-665WX

600 50/60  9.0 6,5 800 CE

TL-239-6PT

600 50/60  9.0 4,2 800 CE

TL-2314-965WT

900 50/60  14 5 1,4 CE

TL-2314-9PT

900 50/60  14 4,2 1,4 CE

TL-2315-105WT

970 50/60  15 5 1,4 CE

TL-2318-125WT

1,2 50/60  18 5 1,6 CE

TL-2318-1265WX

1,2 50/60  18 6,5 1,6 CE

TL-2318-12PT

1,2 50/60  18 5 1,6 CE

TL-2322-155WT

1,5 50/60  22 5 2,1 CE

TL-2322-15PT

1,5 50/60  22 4,2 2,1 CE

LL-238-665WO

570 50/60 8 6,5 450 ± 30 CE

LL-2312-965WO

870 50/60 12 6,5 650 ± 30 CE

LL-2316-125WO

1,17 50/60 16 5 870 ± 30 CE

LL-2316-125WT

1,17 50/60 16 5 1,100 ± 30 CE
