Local control functions EX
  • Local control functions EX

Photos are for informational purposes only. View product specification

Manufacturer: Quintex

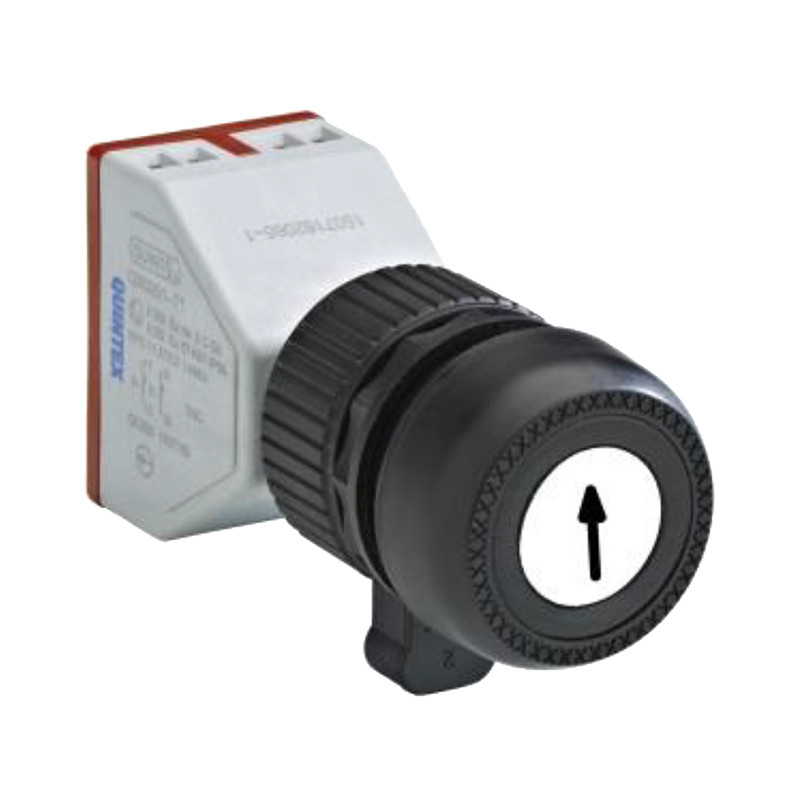

Local control functions EX

- High switiching capacity
- Robust build up
- All approvals

Push button function to build up local control stations or local control panels. Robust and reliable build up with 2,5mm² and 250V. Combinable with all functions. To show the functionality one can use different colors (red, green, white, blue and yellow. The double push button saves space by using two functions

Przyciski w wykonaniu EX
Switching modul
ATEX EX II 2G de IIC
IECEX, ATEX, GOST R
Strefa 1, 21, 2, 22
Ta: -55oC do 60oC

Electrical parameters:
U 250 V 250 V 110 V 24 V
I 16 A 10:00 AM 0,5 A 1:00 AM
Ta < 40oC < 60oC < 60oC < 60oC
Switching cycles >100 000
Mounting: TS35, bottom (mounting plate), lid

Signal modul
ATEX EX 2G EX de IIC
IECEX, ATEX, GOST R
Zone 1, 21, 2, 22
Ta: -55oC do 60oC, Pmax <1W

U: AC 24-240V, DC 24-36V
Optional AC 220V – 380V
Mouting: TS35, bottom (mouting plate), lid

Illuminated push button
ATEX EX II 2G de IIC
IECEX, ATEX, GOST R
Zone 1, 21, 2, 22
Ta: -55oC do 60oC

Electrical parameters:
U 250 V 24 V
I 6:00 AM 1:00 AM

U: AC 24-240V, DC 24-36V
Mounting: TS35, bottom (mouting plate), lid


P1 = single pushbutton, P2 = double pushbutton

Rail QX-0201-PX 60 QX-0201-PX 60
QX-0201-PX 61 QX-0201-PX 61
QX-0201-PX 62 QX-0201-PX 62
Lid QX-0201-PX 70 QX-0201-PX 70
QX-0201-PX 71 QX-0201-PX 71
QX-0201-PX 72 QX-0201-PX 72

PX – kind of push button (e.g. P1, P2)

Single pushbutton P1

Przyciski sterujące P1

Double pushbutton P2

Podwójne przyciski sterujące P2

Emergency push button with mushroom head P3

Grzybkowe przyciski awaryjne P3

Push button with mushroom head P4

Grzybkowe przyciski awaryjne P4

Key release push button with mushroom head Y0, red

Przyciski grzybkowe z kluczykiem Y0, czerwone

Key release button for local control stations Y1

Przyciski grzybkowe z kluczykiem Y1

2-pole switching function for local control stations

Przyciski dwupozycyjne


Contact scheme Ø39
Przyciski w wykonaniu EX
Ø60
Przyciski w wykonaniu EX


K4 6 003

S4 6 003

Rail

K4 7 003

S4 7 003

Lid

K4 6 204

S4 6 204

Rail

K4 7 204

S4 7 204

Lid

K5 6 204

S5 6 204

Rail

K5 7 204

S5 7 204

Lid

K5 6 003

S5 6 003

Rail

K5 7 003

S5 7 003

Lid

K6 6 201

S6 6 201

Rail

K6 7 201

S6 7 201

Lid

K6 6 002

S6 6 002

Rail

K6 7 002

S6 7 002

Lid

K8 6 005

S8 6 005

Rail

K8 7 005

S8 7 005

Lid



S8 x 005 9

lockable

Description of push button

CodeColor of labelEngraved signColor of sign
01
02
03
04
green
green
green
green

I
ON
START

white
white
white
21
22
23
24
red
red
red
red

0
OFF
STOP

white
white
white
41
42
43
44
45
46
47
48
49
white
white
white
white
white
white
white
white
white

II

START
STOP
FW
BW
STOP
↑↑

black
black
black
black
black
black
red
black
61
62
yellow
yellow

↑↑

white
81 black

4-pole switching function for local control stations
Contact SchemaeOrder number
przycisk EX 2 NC / 2NO

2 NC / 2NO

ABC50XX
przycisk EX 4 NC

4 NC

ABC51XX
przycisk EX 4 NO

4 NO

ABC52XX
przycisk EX 1 NC /3 NO

1 NC /3 NO

ABC53XX
przycisk EX 3 NC / 1 NO

3 NC / 1 NO

ABC54XX


AB - The table below
C - 6 - Rail mount
7 - Lid mount
XX - lors and description of push buttons


CodeP1P2P3P4Y0Y1
Operator

Przycisk sterujący Ex P1
Push button

Podwójny przycisk sterujący P2
Double push button

Przycisk alarmowy P3
Emergency button

Przycisk grzybkowy, czarny P4
Black mushroom button

Czerwony przycisk
grzybkowy z kluczykiem Y0
Red mushroom button with key

Przycisk z kluczykiem Y1
Button with key


przycisk EX


LED indicators for local control panels

Indicators to build up local control stations and local control panels. All indicator with high brightness, even with daylight easy to recognize. Low current and power consuption by modern LED technology.

Przyciski podświetlane LED


Illuminated push button function for local control stations

ContactRailLid
Przyciski podśeitlane - połączenie QX-212-  QX-212-
PR63R1 PR73R1
PG63G1 PG73G1
PY63Y1 PY73Y1
PB63B1 PB73B1
PW63W1 PW73W1

przyciski podświtlane połaczenie PR64R1 PR74R1
PG64G1 PG74G1
PY64Y1 PY74Y1
PB64B1 PB74B1
PW64W1 PW74W1
przycisk podświetlany montaż na szynie
Rail mounting
przyciski podświetlane montaż w pokrywie
Lid mounting

Przyciski podświetlane wymiary

Potentiometer-function for local control stations

DescriptionOrder number
100 Ω

QX-0203-X01

200 Ω

 QX-0203-X02

500 Ω

 QX-0203-X03

1,000 Ω

 QX-0203-X04

2,000 Ω

 QX-0203-X05

5,000 Ω

 QX-0203-X06

10,000 Ω

 QX-0203-X07

20,000 Ω

 QX-0203-X08

50,000 Ω

 QX-0203-X09

100,000 Ω

 QX-0203-X10

200,000 Ω

 QX-0203-X11

500,000 Ω

 QX-0203-X12

1,000,000 Ω

 QX-0203-X13

2,000,000 Ω

 QX-0203-X14

Potencjometry w wykonaniu EX

potencjometry w wykonaniu EX wymiary
