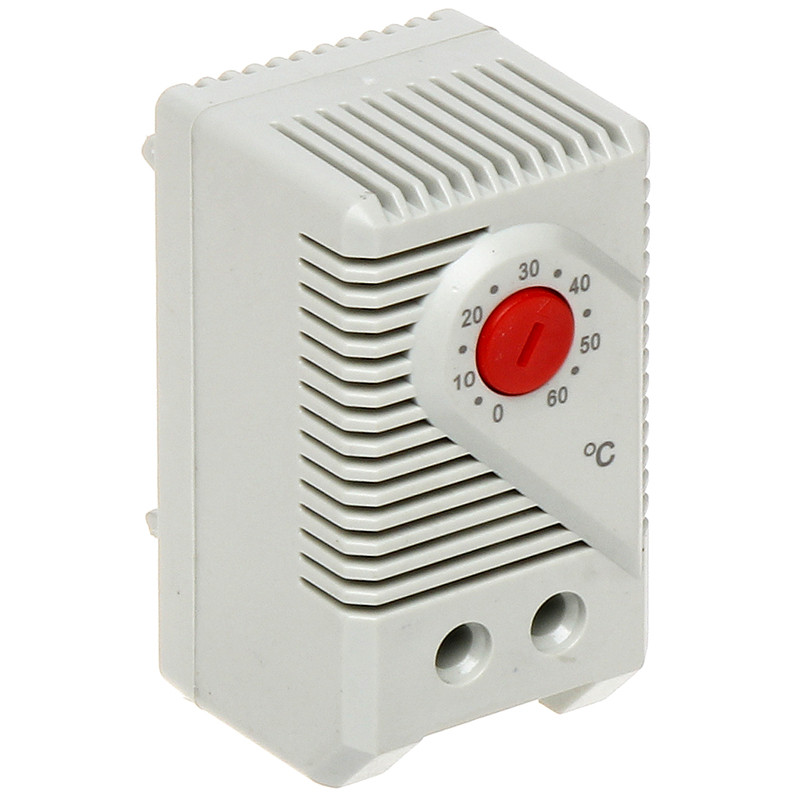

Mini Thermostat KTO 011 /KTS 011
  • Mini Thermostat KTO 011 /KTS 011

Photos are for informational purposes only. View product specification

Mini Thermostat KTO 011 /KTS 011

Mini Thermostat KTO 011 /KTS 011


Wide control range
Small dimensions
Easy to assembly
High contact current
KTO 011: Normally closed thermostat (NC) for heating systems.

KTS 011: Normally open thermostat (NO) for ventilation and cooling systems.

Technical data
Thermostat NC/NO
Temperature range see table
Switching over temperature difference
<8K
Sensor type
Bimetal
Contact type, contact resistance
Fast
<10mOhm
Life time
> 100 000 cycles
Max contact current
AC 250V 10A (resistant load)
AC 120V 15A (resistant load)
AC 250V 2A (inductive load cos phi = 0,6)
AC 120V 2A (inductive load @ cos phi = 0,6)
DC 30 W
EMC
 EN 55014-1-2, EN 61000-3-2, EN 61000-3-3
Terminals
2 pole 2,5 mm2
Mounting
For DIN 35 mm bus , EN 50022
Casing
plastic  UL94V-0, light grey
Dimensions
60 x 33 x 43 mm
Weight
ok. 40 g
Assembly
arbitrary
Operation temperature
-45 do +70 °C (-49 do +158°F)
IP
IP20



Catalogue number
Temperature rangeArticle number (NC)Article number (NO)Certificates:
0 do +60 °C 01140.0-00 01141.0-00 VDE
-10 do+50 °C 01142.0-00 01143.0-00 VDE
+20 do +80 °C 01159.0-00 01158.0-00 VDE
32 do 140 °F 01140.9-00 01141.9-00 ULFileNo. E164102
14 do 122 °F 01142.9-00 01143 9-00 ULFileNo.E164102
0 do +60 °C 01146.9-00 01147.9-00 ULFileNo. E164102
