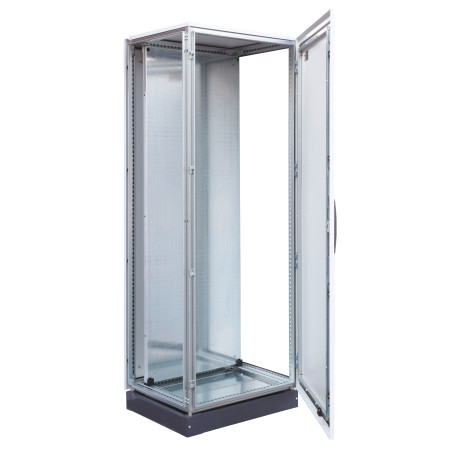

Frame assembled with door, mounting plate and OKB2086 rear panel

OK Control Cabinet Series with Self-Assembly Frame

The OK Control Cabinet Series with Self-Assembly Frame is Quadritalia's latest product, the result of a revolutionary technical design and the application of innovative solutions developed by the R&D department.

Patented Solution

The self-assembly frame consists of patented, symmetrical profiles made of Sendzimir galvanized steel. These elements are formed on a profiling line, weldless, and unpainted, ensuring high electromagnetic compatibility (EMC). Combined with the patented orthogonal corner connector made of Zamak alloy, the design guarantees maximum rigidity and mechanical strength.

Economical Logistics

The economic aspect of this solution deserves particular attention. Thanks to its flat-pack design (for self-assembly), the OK cabinet offers a more favorable purchase price while significantly reducing transportation and storage costs. Furthermore, the risk of damage during transportation is minimized, resulting in greater reliability and delivery security.

Strength of construction

Another significant advantage is the cabinets' high durability. They successfully passed the Lifting Test in accordance with the IEC 61439-1 standard (section 10.2.5), performed with a 25% load reserve (1250 kg), without any damage. Additionally, the cabinets have been subjected to rigorous dynamic load resistance tests simulating earthquakes, conducted in accordance with the requirements of the IEC 60068-2-57 (2013), IEC 60068-3-3 (2019), Telcordia GR-63-CORE, and IEEE 693-2018 standards - at the ZONE 4 level - the highest resistance level in this standard.

Such high durability allows for safe use of the cabinets in demanding infrastructure and industrial applications, such as railways, power plants, tunnels, refineries, and earthquake-prone areas, where resistance to vibration and shock is crucial.

Anti-corrosion protection

For aggressive environments, cabinet versions with an additional zinc layer are available, meeting the requirements of corrosiveness classes C3, C4, and C5 according to the ISO 12944 standard. The cabinets are available in a wide range of colors, and the coating Epoxy-polyester resin ensures high durability and aesthetics, even in harsh industrial environments.

Availability Variants

OK Series enclosures are available in two variants:

• Pre-assembled (OKB)
• Disassembled, flat-packed (OKK).

Both versions can be ordered in all configurations available in the catalog – compliant with the requirements of the automation and power distribution market.

OKB Series – Packaging and Contents

OKB Series is a complete, pre-assembled control cabinet frame consisting of:

• Frame structure – 4 vertical posts, bottom element with cable entries, and top panel
• DBE standard door
• Rear panel RPE
• PNA mounting plate

Delivery

• Complete cabinet on a pallet, secured for transport.

Complementary elements

Ordered separately (separate packaging):

• Pair of DLK side panels
• ZAK + FLK base

Painting

• Cabinets powder-coated with a thermally cured epoxy-polyester coating, RAL 7035, with a structured finish.
• Plinth powder-coated with a thermally cured epoxy-polyester coating, RAL 7024, with a high-strength coating. Gloss.

Protection and certifications

• IP55–IP65 protection class according to IEC 62208 and CEI EN 62262
• Mechanical resistance IK10 according to IEC 62208 and CEI EN 62262
• NEMA Type 1–12 certifications: CSA 22.2, 941 and 942, and UL 508a

General technical characteristics

• External panel sheet thickness: 1.5 mm
• Door sheet thickness: 2 mm
• Mounting plate thickness: 2.5 mm mm

Certification:
