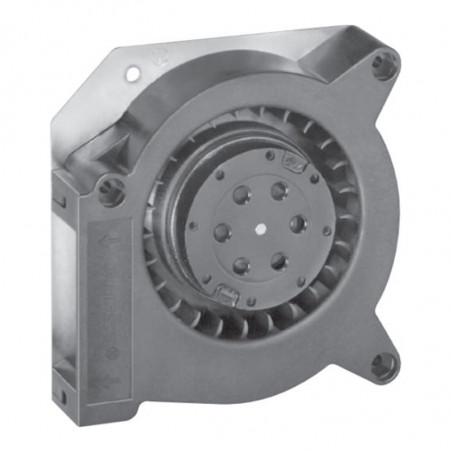

Radial DC ventilators
  • Radial DC ventilators

Photos are for informational purposes only. View product specification

Radial DC ventilators

Radial DC ventilators

Table. Technical data

TypeEfficiency
[m3/h]
Voltage
[VDC]
Noise level
[dB(A)]
bearingInput power.
[W]
Operation temperature
[°C]
Operation time @.
[40°C/h]
Air flow directionTerminal type
slideball
SERIESRL 90 / 121 x 121 x 37 [mm]
RL90-18/12NG 40 12 - +   5,5 -10 do 75 62500 R L
RL90-18/12N 40 12 -   + 5,5 -30 do 75 62500 R L
RL90-18/14NG 40 24 - +   5 -10 do 75 62500 R L
RL90-18/14N 40 24 -   + 5 -30 do 75 62500 R L
SERIESRG 90 / 135 x 135 x 38 [mm]
RG90-18/12NG 55 12 - +   6 -10 do 75 62500 R L
RG90-18/12N 55 12 -   + 6 -30 do 75 62500 R L
RG90-18/14NG 55 24 - +   5,5 -10 do 75 62500 R L
RG90-18/14N 55 24 -   + 5,5 -30 do 75 62500 R L
RG90-18/18N 55 48 -   + 5,5 -30 do 75 62500 R L
SERIESRG 125 / 180 x 180 x 40 [mm]
RG125-19/12NM 60 12 -   + 2 -30 do 75 70000 R L
RG125-19/12N 87,5 12 -   + 5 -30 do 75 62500 R L
RG125-19/14NM 60 24 -   + 2 -30 do 75 70000 R L
RG125-19/14N 87,5 24 -   + 5 -30 do 75 62500 R L
RG125-19/18N 87,5 48 -   + 5 -30 do 75 62500 R L
SERIESRG 160 / 220 x 220 x 56 [mm]
RG160-28/12NM 139 12 -   + 7,5 -20 do 70 80000 R L
RG160-28/12N 209 12 -   + 21 -20 do 70 70000 R L
RG160-28/14NM 139 24 -   + 7 -20 do 70 80000 R L
RG160-28/14N 209 24 -   + 20 -20 do 70 70000 R L
RG160-28/18N 209 48 -   + 20 -20 do 70 70000 R L
SERIESRER 100 / 100 /E x 32 [mm]
RER100-25/12 57 12 -   + 4 -20 do 60 65000 R L
RER100-25/14 57 24 -   + 4 -20 do 60 65000 R L
SERIESRER 125 / 138/Ex 35 [mm]
RER125-19/12N 110 12 -   + 4,5 -30 do 75 62500 R L
RER125-19/14N 110 24 -   + 4,5 -30 do 75 62500 R L
SERIESRER 160 / 176 /E x 54 [mm]
RER160-28/12N 240 12 -   + 18,5 -20 do 70 75000 R L
RER160-28/14N 240 24 -   + 17,5 -20 do 70 75000 R L


Scheme


SERIESRL 90N

SERIESRG 90N

SERIESRG 125N

SERIESRG 160N

SERIESRER 100

SERIESRER 125N

SERIESRER 160N
//
