Manufacturer: Ebmpapst

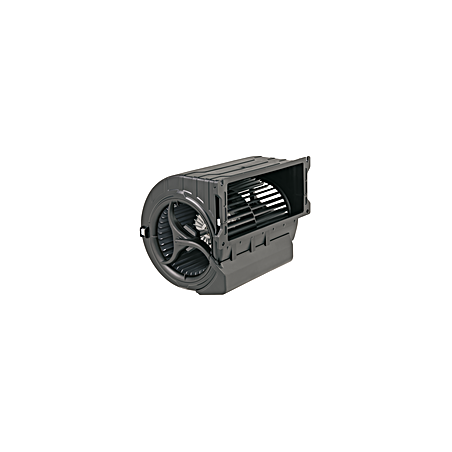

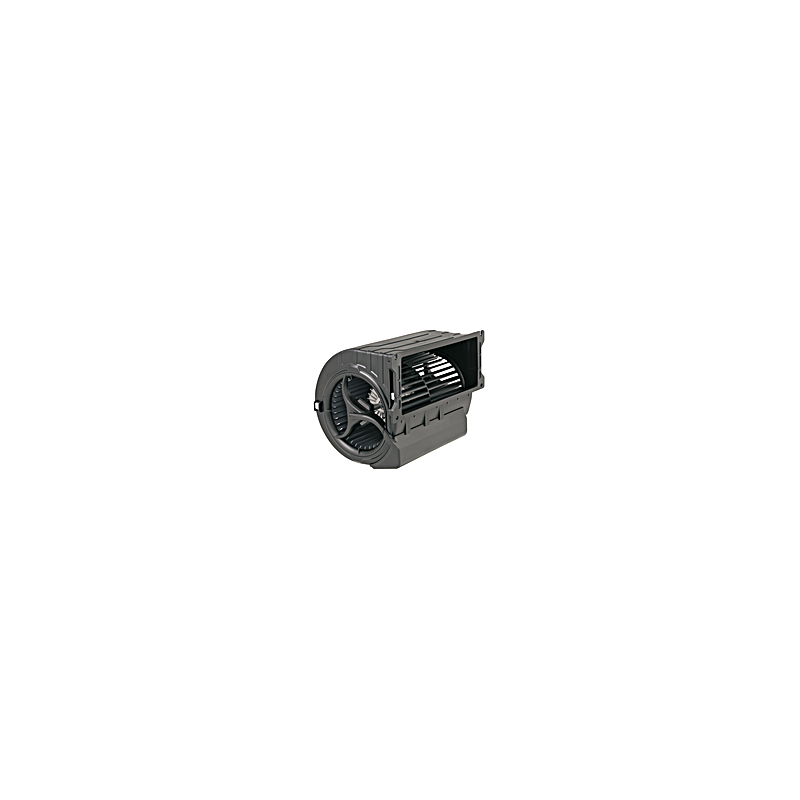

D3G160-BD05-02 EC radial fan 230V 430W

  • D3G160BD0502
  • Housing material Steel sheet, galvanized
  • Protection rating IP54
  • Frequency 50/60
  • Input power 430
  • Phase 1~
  • Nominal voltage 230
  • Speed 2240
  • Current draw 2
  • Max. ambient temperature 50
  • Size 160 mm
  • Fan type EC double inlet centrifugal blower with spiral housing
  • Voltage range 200 ... 277
  • Rotor material Steel sheet, galvanized
  • Type of voltage AC
  • Motor protection Thermal Overload Protection (TOP) connected internally
  • Motor size 74
  • Insulation class F
  • Protection class against moisture (F) / environment (H) H0 - dry environment
  • Motor bearing Ball bearing
  • Rotor surface Galvanized
  • Max. permitted ambient temp. (transport/storage) 80
  • Min. ambient temp. (transport/storage) -40
  • Min. back pressure 250
  • Weight 6,52 kg
  • Compliance with standards CE
