Manufacturer: Ebmpapst

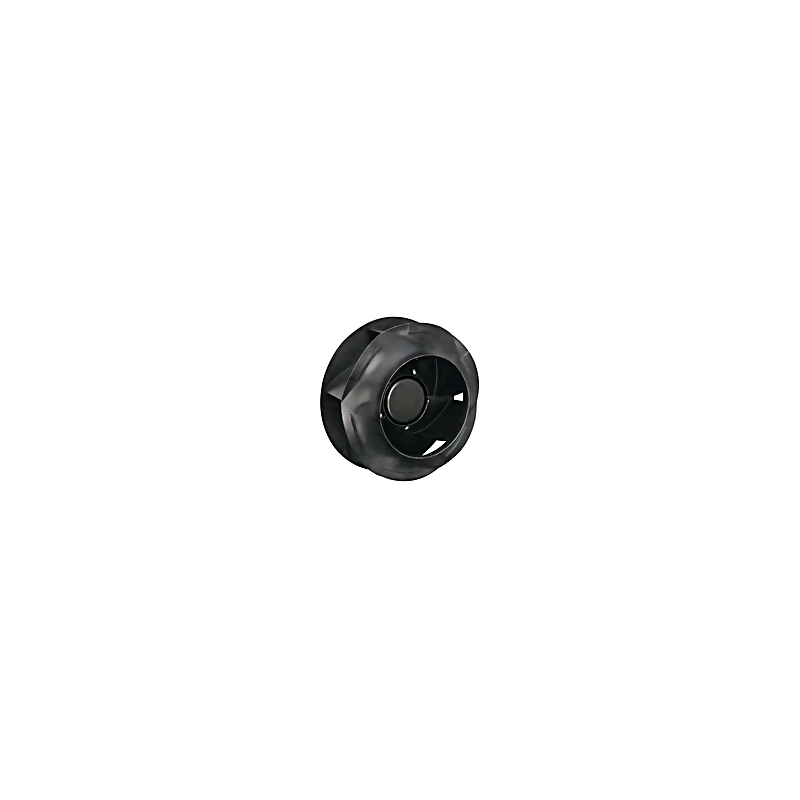

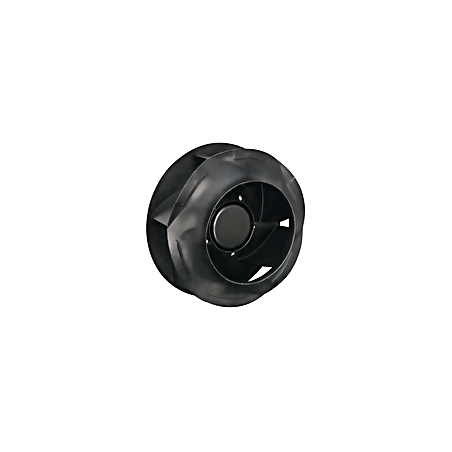

G3G225-RI07-01 EC radial fan 230V 500W

  • G3G225RI0701
  • Housing material Plastik PP
  • Protection rating IP54
  • Frequency 50/60
  • Input power 500
  • Phase 1~
  • Nominal voltage 230
  • Speed 4300
  • Current draw 2.2
  • Max. ambient temperature 60
  • Certificate CSA C22.2 No. 77 + CAN/CSA-E60730-1 / UL 1004-7 + 60730-1
  • Size 225 mm
  • Fan type EC single inlet centrifugal blower with spiral housing
  • Voltage range 200 ... 277
  • Rotor material PA plastic
  • Type of voltage AC
  • Motor protection Thermal Overload Protection (TOP) connected internally
  • Motor size 74
  • Insulation class B
  • Protection class against moisture (F) / environment (H) H1
  • Motor bearing Ball bearing
  • Rotor surface Thick-layer passivated
  • Max. permitted ambient temp. (transport/storage) 80
  • Min. ambient temp. (transport/storage) -40
  • Min. back pressure
  • Weight 4,4 kg
  • Compliance with standards EN 60034-1; EN 60204-1; EN 60335-1 / CE / UKCA
