Manufacturer: Ebmpapst

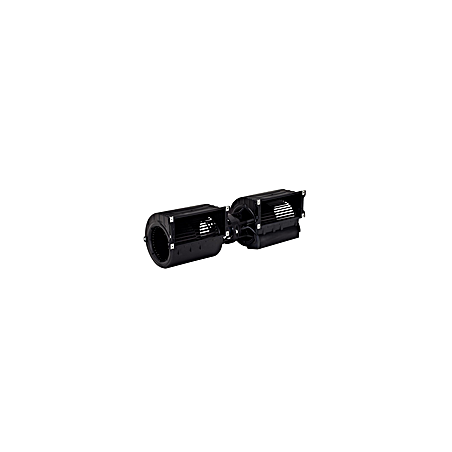

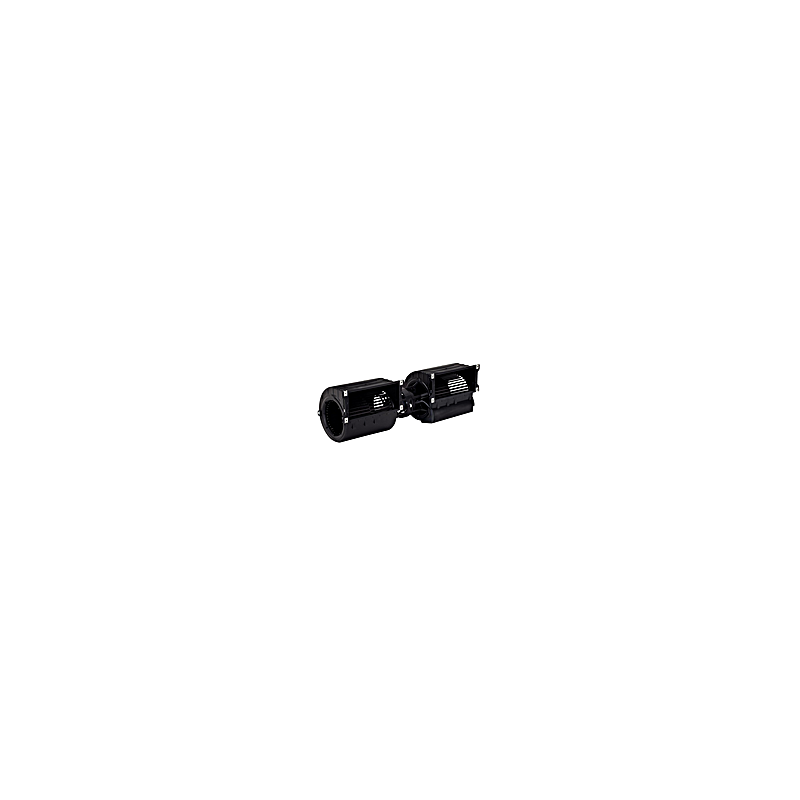

K3G097-AS81-81 EC radial fan 26V 435W

  • K3G097AS8181
  • Housing material Plastik PA UL94 V0
  • Protection rating IP24 HP engine, IP6K9K electronics (mating connector installed)
  • Input power 435
  • Nominal voltage 26
  • Speed 3900
  • Min. ambient temperature -40
  • Max. ambient temperature 85
  • Certificate EAC
  • Size 97 mm
  • Fan type EC double radial blower
  • Voltage range 16 ... 32
  • Rotor material PA plastic UL94 V0
  • Type of voltage DC
  • Motor size 84
  • Insulation class B
  • Protection class against moisture (F) / environment (H) H3
  • Motor bearing Ball bearing / (sealed)
  • Max. permitted ambient temp. (transport/storage) 85
  • Min. ambient temp. (transport/storage) -40
  • Min. back pressure
  • Weight 2,2 kg
  • Compliance with standards EN 15085-1, CPC3; EN 45545-2, HL3; EN 50155; EN 61373, Cat. 1B
