Manufacturer: Ebmpapst

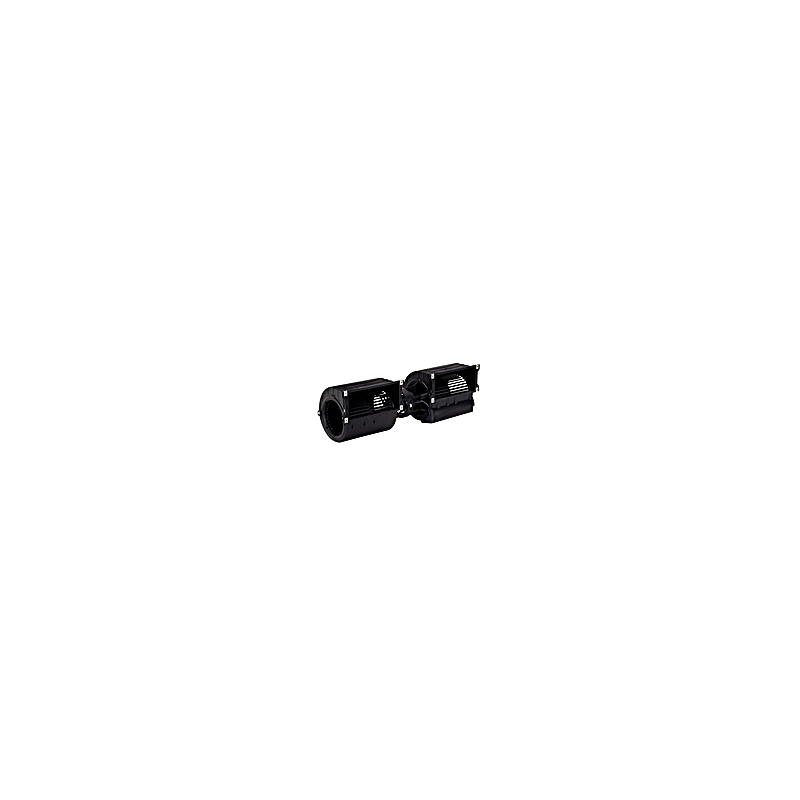

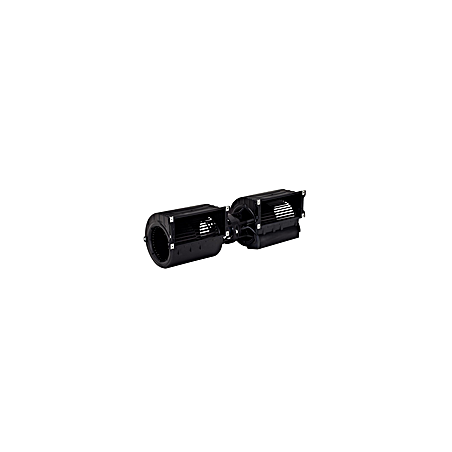

K3G097-AT85-P1 EC radial fan 110V 330W

  • K3G097AT85P1
  • Housing material Plastik PA
  • Protection rating Customer specific / IP 6K9K
  • Frequency DC
  • Input power 330
  • Nominal voltage 110
  • Speed 3450
  • Current draw 3
  • Max. ambient temperature 60
  • Certificate EAC / CCC
  • Size 97 mm
  • Fan type EC double radial blower
  • Voltage range 77 ... 138
  • Rotor material PA plastic
  • Type of voltage DC
  • Motor protection Electronic engine protection
  • Motor size 74
  • Insulation class B
  • Protection class against moisture (F) / environment (H) H3
  • Motor bearing Ball bearing / (sealed)
  • Max. permitted ambient temp. (transport/storage) 80
  • Min. ambient temp. (transport/storage) -40
  • Min. back pressure
  • Weight 2,62 kg
  • Compliance with standards EN 45545-2, HL3; EN 50155; EN 61373, Cat. 1B
