Manufacturer: Ebmpapst

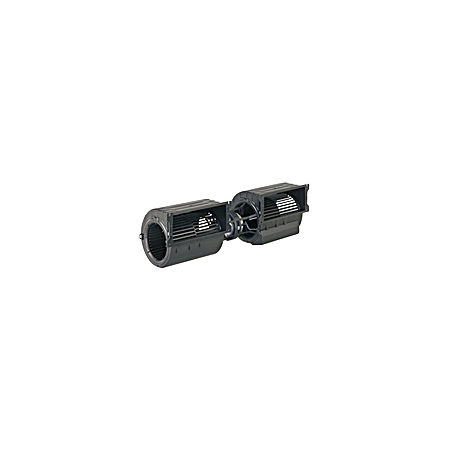

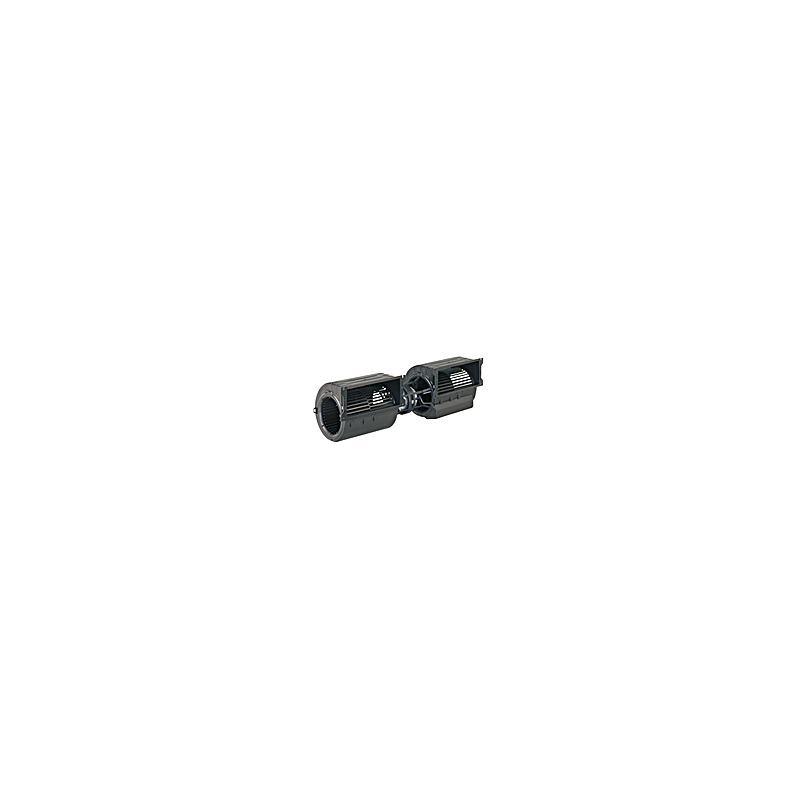

K3G160-AD03-02 EC radial fan 230V 170W

  • K3G160AD0302
  • Housing material Plastik PP
  • Protection rating Motor IP44, electronics IP20 / depending on mounting and position
  • Frequency 50/60
  • Input power 170
  • Phase 1~
  • Nominal voltage 230
  • Speed 1090
  • Current draw 0.8
  • Max. ambient temperature 50
  • Certificate CSA C22.2 No. 77 + CAN/CSA-E60730-1 / UL 1004-7 + 60730-1
  • Size 160 mm
  • Fan type EC double radial blower
  • Voltage range 200 ... 240
  • Rotor material Steel sheet, galvanized
  • Type of voltage AC
  • Motor protection Thermal Overload Protection (TOP) connected internally
  • Motor size 74
  • Insulation class F
  • Protection class against moisture (F) / environment (H) H0+
  • Motor bearing Ball bearing
  • Rotor surface Galvanized
  • Electronics housing material PP plastic
  • Max. permitted ambient temp. (transport/storage) 80
  • Min. ambient temp. (transport/storage) -40
  • Min. back pressure
  • Weight 6,24 kg
  • Compliance with standards EN 60335-1 / CE
