Manufacturer: Ebmpapst

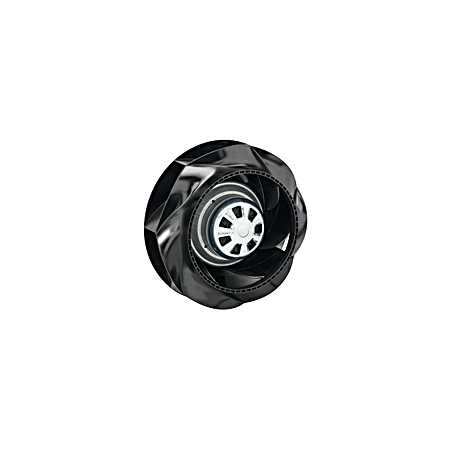

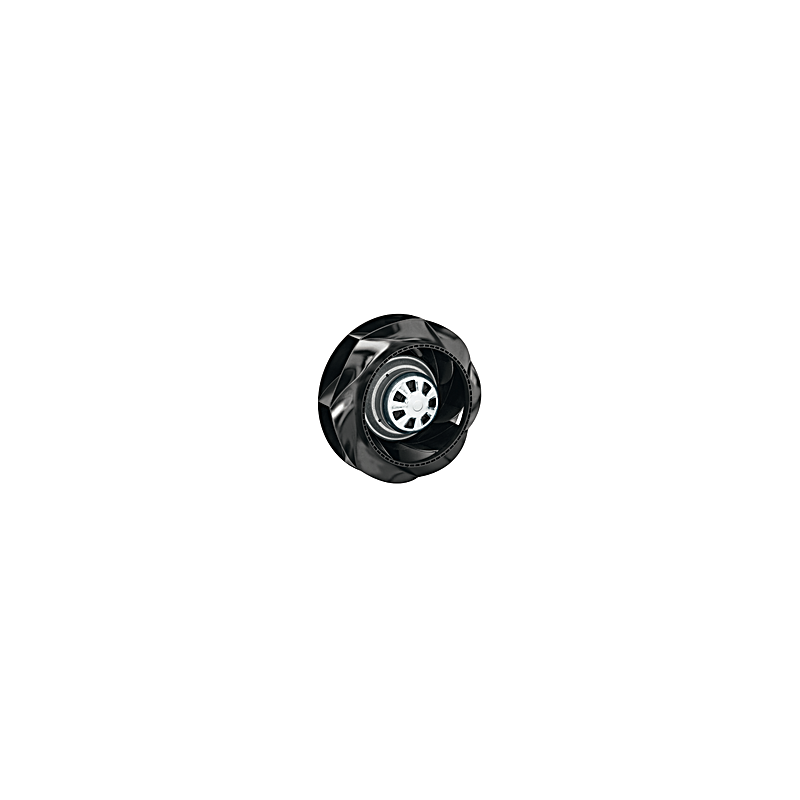

R1G280-RC71-81 EC radial fan 24V 105W

  • R1G280RC7181
  • Protection rating IP24 HP motor
  • Input power 105
  • Nominal voltage 24
  • Speed 1700
  • Current draw 4.4
  • Min. ambient temperature -25
  • Max. ambient temperature 60
  • Certificate EAC
  • Size 280 mm
  • Fan type EC single-inlet centrifugal fan
  • Voltage range 16 ... 32
  • Rotor material PA plastic, black painted sheet metal
  • Type of voltage DC
  • Motor size 74
  • Insulation class B
  • Protection class against moisture (F) / environment (H) H3
  • Motor bearing Ball bearing / (sealed)
  • Rotor surface Painted black
  • Electronics housing material Die-cast aluminum, painted black
  • Max. permitted ambient temp. (transport/storage) 80
  • Min. ambient temp. (transport/storage) -40
  • Weight 2,455 kg
  • Compliance with standards EN 15085-1, CPC3; EN 45545-2, HL3; EN 50155; EN 61373, Cat. 1B
