Manufacturer: Ebmpapst

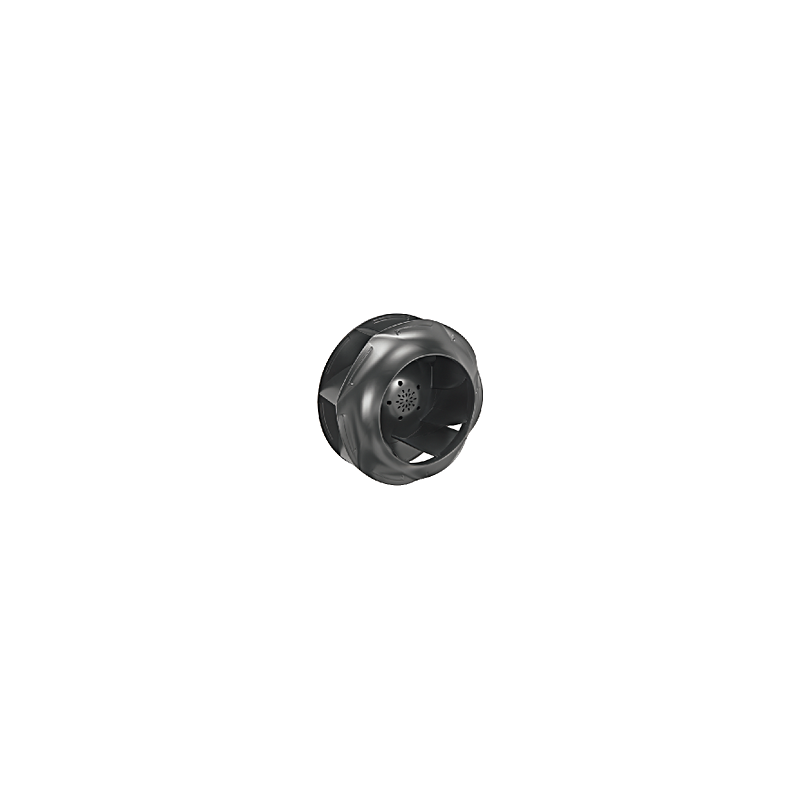

R3G500-RT04-H1 EC radial fan 230V 460W

  • R3G500RT04H1
  • Protection rating IP55
  • Frequency 50/60
  • Input power 460
  • Phase 1~
  • Nominal voltage 230
  • Speed 900
  • Current draw 2
  • Min. ambient temperature -25
  • Max. ambient temperature 40
  • Certificate UL 1004-7 + 60730-1 / CSA C22.2 No. 77 + CAN/CSA-E60730-1 / EAC
  • Size 500 mm
  • Fan type EC single-inlet centrifugal fan
  • Voltage range 200 ... 277
  • Rotor material PP plastic
  • Type of voltage AC
  • Motor protection Thermal Overload Protection (TOP) connected internally
  • Motor size 84
  • Insulation class F
  • Protection class against moisture (F) / environment (H) H1
  • Motor bearing Ball bearing
  • Rotor surface Painted black
  • Electronics housing material Die-cast aluminum
  • Max. permitted ambient temp. (transport/storage) 80
  • Min. ambient temp. (transport/storage) -40
  • Weight 9,4 kg
  • Compliance with standards CE
