Manufacturer: Ebmpapst

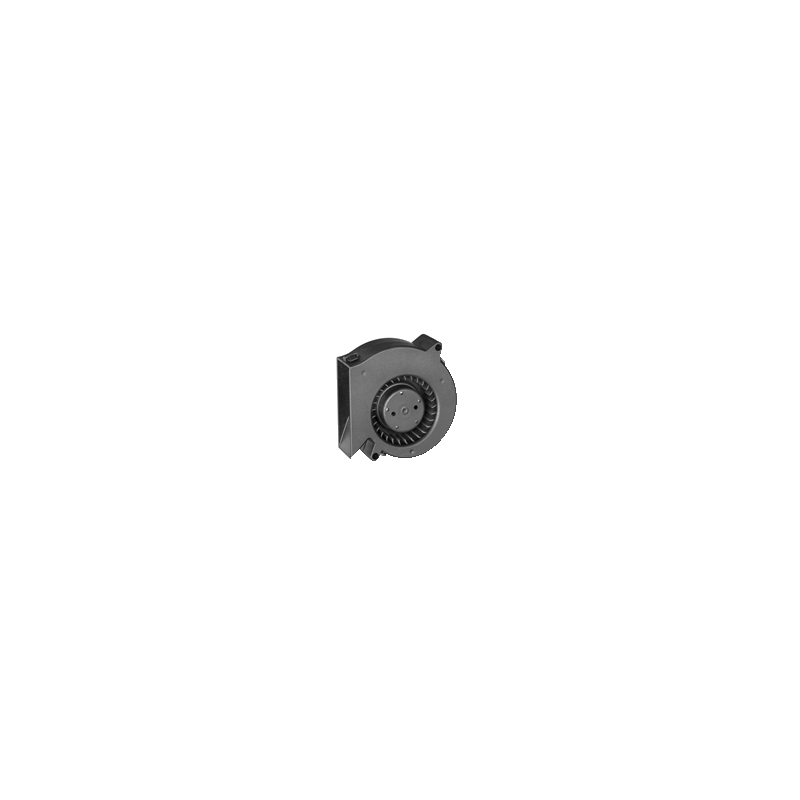

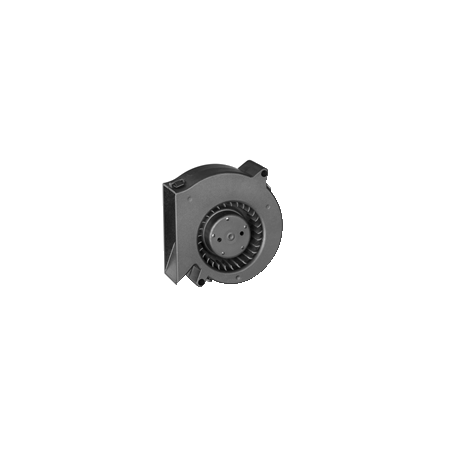

RL 48-19/14 DC radial fan 24V 5W

  • RL481914
  • Air flow direction Axial inlet, radial outlet discharge.
  • Dimensions 76 x 76 x 27 mm
  • Housing material Obudowa zwoju wykonana z tworzywa sztucznego wzmocnionego włóknem szklanym.
  • Input power 5
  • Nominal voltage 24
  • Speed 4400
  • Min. ambient temperature -20
  • Max. ambient temperature 70
  • Air flow 28
  • Fan type DC single inlet radial blower
  • Voltage range 18 ... 26,4
  • Rotor material Glass fiber reinforced plastic
  • Type of voltage DC
  • Locked-rotor protection Electronic protection against blocked rotor.
  • Weight 0,075 kg
