Manufacturer: Ebmpapst

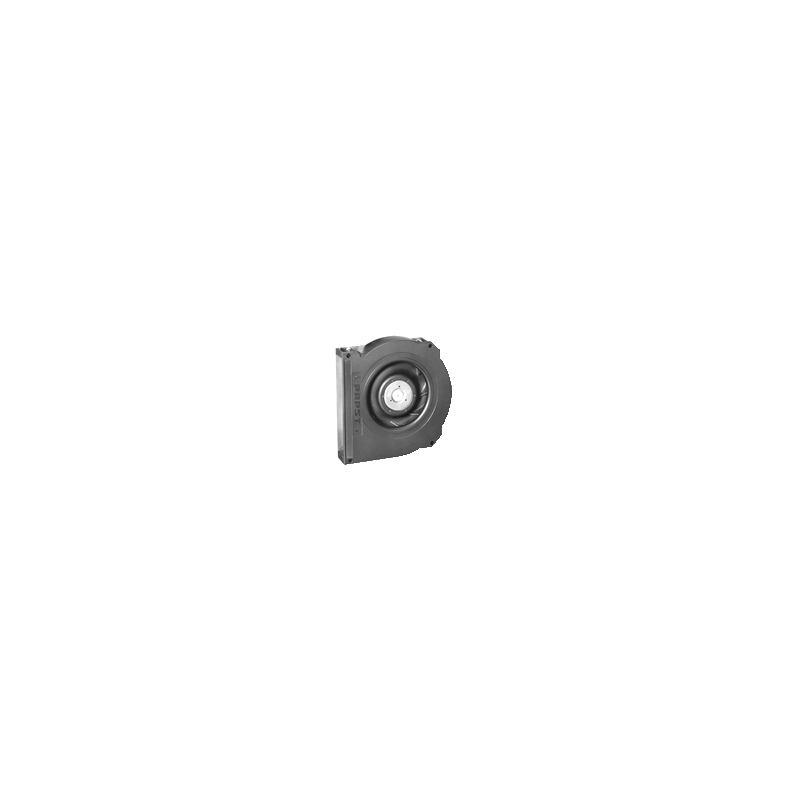

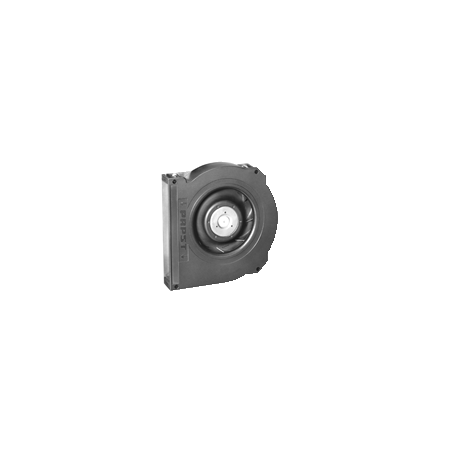

RLF 100-11/18 DC radial fan 48V 8.6W

  • RLF1001118
  • Air flow direction Axial inlet, radial outlet discharge.
  • Dimensions 127 x 127 x 25 mm
  • Housing material Spiral housing made of glass fibre reinforced plastic, housing base made of galvanised sheet steel.
  • Input power 8.6
  • Nominal voltage 48
  • Speed 5100
  • Min. ambient temperature -20
  • Max. ambient temperature 75
  • Air flow 64
  • Fan type DC single inlet radial blower
  • Voltage range 36 ... 60
  • Rotor material Glass fiber reinforced plastic
  • Type of voltage DC
  • Locked-rotor protection Electronic protection against reverse polarity and locked rotor.
  • Weight 0,32 kg
