Manufacturer: SALTEK

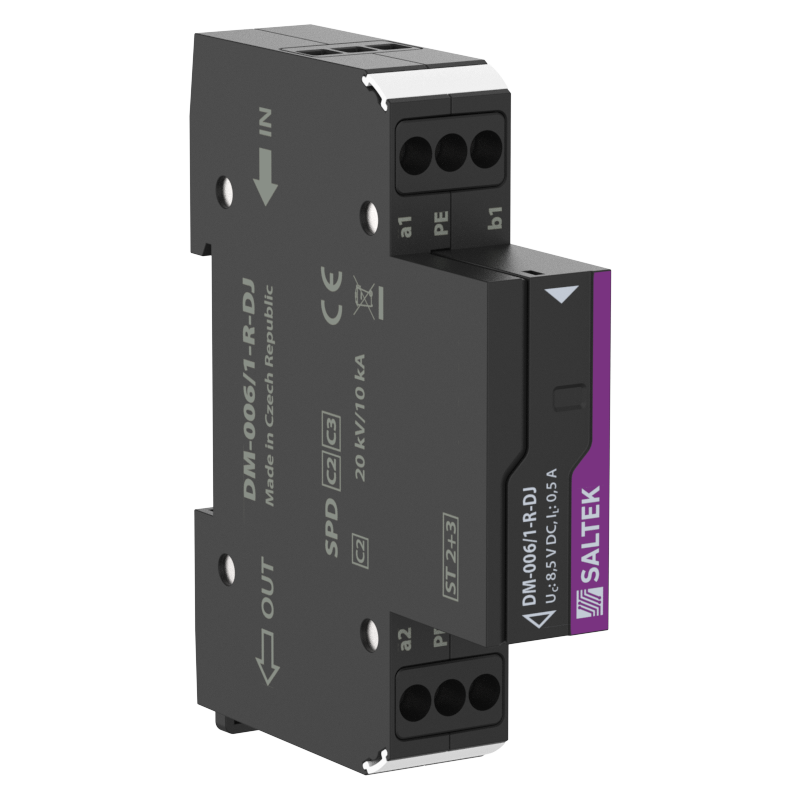

DM-006/1-R-DJ - Surge protector - SPD

  • DM-006/1-R-DJ
  • Rated voltage 6 V DC
  • Protection rating IP 20
  • Type of SPD D1,C1,C2,C3,B2
  • Maximum operating voltage 6.00 V AC
Parameter name Parameter value
Type of SPD D1,C1,C2,C3,B2
Location of SPD ST 2+3
Mounting DIN rail 35 mm
Nominal voltage Un 6 V DC
Maximum operating voltage Uc 6.00 V AC
Maximum operating voltage Uc 8.50 V DC
Nominal load current IL 0.500 A
Treshold frequency core-core f 1.00 MHz
Serial resistance per core R 1.00 Ω
D1 total discharge current (10/350 µs) cores-PE ITotal 1.00 kA
C1 voltage protection level mode core-core Up 20.00 V
C1 test voltage mode core-core UOC 4.00 kV
C1 voltage protection level mode core-PE Up 20.00 V
C1 test voltage mode core-PE UOC 4.00 kV
B2 voltage protection level mode core-core Up 15.00 V
B2 test voltage mode core-core UOC 1.00 kV
B2 voltage protection level mode core-PE Up 15.00 V
B2 test voltage mode core-PE UOC 1.00 kV
C2 nominal discharge current (8/20 µs) per core In 10.00 kA
C2 total discharge current (8/20 µs) cores-PE ITotal 20.00 kA
C3 nominal discharge current (10/1000 µs) core-PE ISM 10 A
C3 nominal discharge current (10/1000 µs) core-core ISM 10 A
C2 voltage protection level mode core-PE at In Up 25 V
C2 test voltage mode core-PE UOC 20.00 kV
C2 voltage protection level mode core-core at In Up 25 V
C2 test voltage mode core-core UOC 20.00 kV
C3 voltage protection level mode core-PE at 1 kV/µs Up 15 V
C3 voltage protection level mode core-core at 1 kV/µs Up 15 V
Response time core-core ta 1 ns
Response time core-PE ta 1 ns
Connection (input - output) terminals-terminals
Cross-section of connected conductors solid (max) 4.00 mm2
Cross-section of connected conductors stranded (max) 4.00 mm2
Degree of protection IP 20
Range of ambient temperatures (min/max) -40 / 80 °C
Humidity 5 - 95 %
According to standard EN 61643-21+A1,A2:2013, IEC 61643-21+A1,A2:2012
ETIM Class EC001625
Customs tariff number 85363010
EAN 8595090567264
