Manufacturer: SALTEK

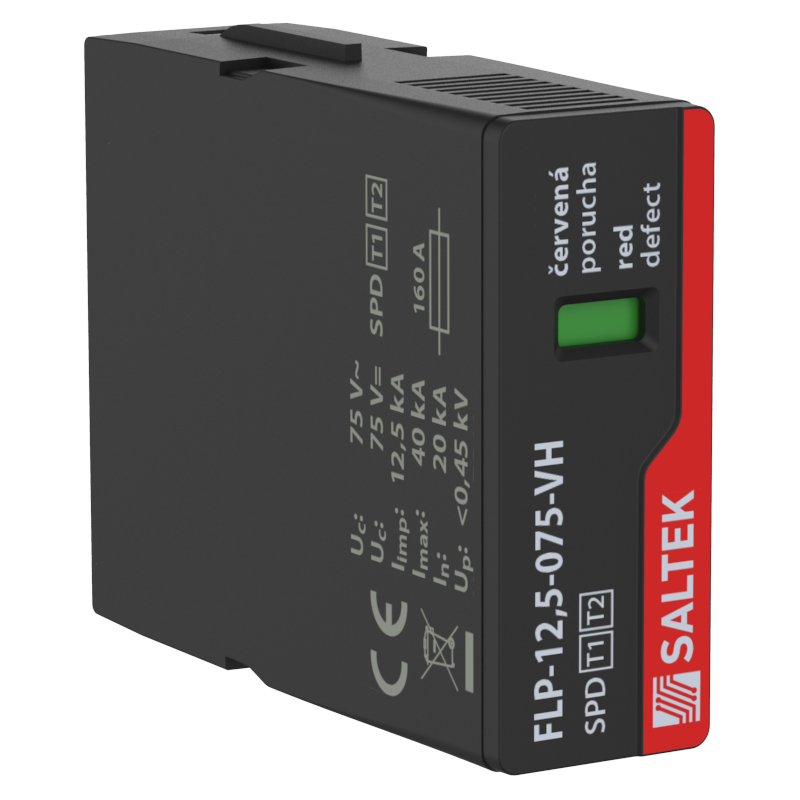

FLP-12,5-075-VH/0 - Surge protector - SPD

  • FLP-12,5-075-VH/0
  • Type of SPD T1,T2
  • Total discharge current (10/350 µs) 12.50 kA
  • Maximum operating voltage 75.00 V AC
Parameter name Parameter value
Type of SPD T1,T2
Maximum operating voltage Uc 75.00 V AC
Maximum operating voltage Uc 75.00 V DC
Short-circuit current rating ISCCR 25.0 kA
Lightning impulse current (10/350 µs) Iimp 12.50 kA
Nominal discharge current (8/20 µs) In 20.00 kA
Maximum discharge current (8/20 µs) Imax 40.00 kA
Voltage protection level Up 0.45 kV
Response time ta 25 ns
Fault indication red indication field
ETIM Class EC000381
Customs tariff number 85363030
EAN 8595090545712
