Manufacturer: SALTEK

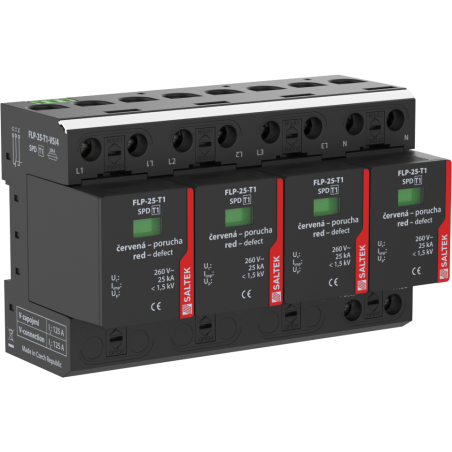

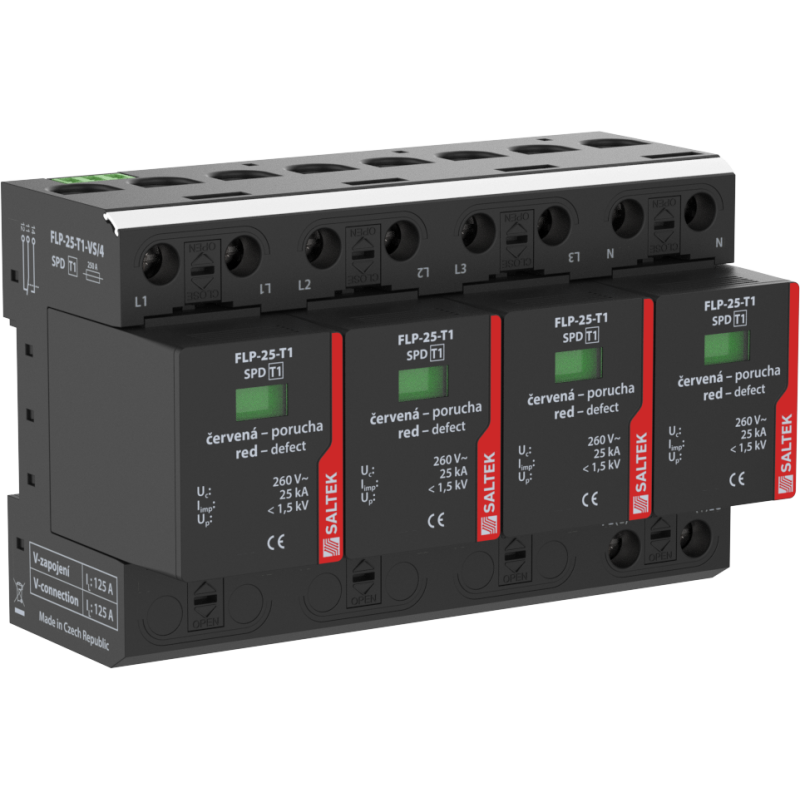

FLP-25-T1-VS/4 - Surge protector - SPD

  • FLP-25-T1-VS/4
  • Rated voltage 230 V AC
  • Protection rating IP 20
  • Type of SPD T1
  • Type of network TN
  • Remote indication potential-free change-over contact
  • Total discharge current (10/350 µs) 25.00 kA
  • Maximum operating voltage 260.00 V AC
Parameter name Parameter value
Type of SPD T1
Mounting DIN rail 35 mm
Nominal voltage Un 230 V AC
Maximum operating voltage Uc 260.00 V AC
Nominal load current for "V" connection IL 125 A
Type of network TN
Maximum overcurrent protection 250 A gL/gG
Maximum overcurrent protection for "V" connection 125 A gL/gG
Short-circuit current rating ISCCR 50.0 kA
Total discharge current (10/350 µs) ITotal(10/350) 100.00 kA
Lightning impulse current (10/350 µs) Iimp 25.00 kA
Voltage protection level Up 1.50 kV
Response time ta 100 ns
TOV 5 s L-N 335 V
TOV characteristic (TOV 5 s) withstand
Cross-section of connected conductors solid (min) 2.50 mm2
Cross-section of connected conductors solid (max) 50.00 mm2
Cross-section of connected conductors stranded (min) 2.50 mm2
Cross-section of connected conductors stranded (max) 35.00 mm2
Cross-section of remote indication conductors solid (max) 1.5 mm2
Cross-section of remote indication conductors stranded (max) 1.5 mm2
Fault indication red indication field
Remote indication potential-free change-over contact
Remote indication contacts 250V/0,5A AC,250V/0,1A DC
Degree of protection IP 20
Range of ambient temperatures (min/max) -40 / 80 °C
Humidity 5 - 95 %
According to standard EN 61643-11:2012, IEC 61643-11:2011
ETIM Class EC000381
Plug module FLP-25-T1-V/0
Customs tariff number 85363090
EAN 8595090553038
